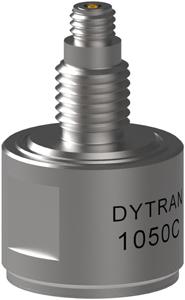

  • Dytran 1050C, Charge Mode Force Sensor
Piezoelectric Force Sensors are available as both charge mode and IEPE configurations and are used to measure both tensile and compressive forces.
1 - 25 of 32 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items

Item #

Item Name

Sensing Element

Sensitivity

Measuring Compression Range

Measuring Tension Range

N/A Dytran 1210C1, Charge Mode Force Sensor N/A Quartz, Compression N/A -18 pC/lbf-4.45 pC/N N/A 5000 lbf22.24 kN N/A
N/A Dytran 1210C2, Charge Mode Force Sensor N/A Quartz, Compression N/A -18 pC/lbf-4.45 pC/N N/A 10000 lbf44.48 kN N/A
N/A Dytran 1210C3, Charge Mode Force Sensor N/A Quartz, Compression N/A -18 pC/lbf-4.45 pC/N N/A 20000 lbf88.86 kN N/A
N/A Dytran 1210C5, Charge Mode Force Sensor N/A Quartz, Compression N/A -18 pC/lbf-4.45 pC/N N/A 60000 lbf266.89 kN N/A
N/A Dytran 1210C6, Charge Mode Force Sensor N/A Quartz, Compression N/A -18 pC/lbf-4.45 pC/N N/A 80000 lbf355.86 kN N/A
N/A Dytran 1210C7, Charge Mode Force Sensor N/A Quartz, Compression N/A -18 pC/lbf-4.45 pC/N N/A 100000 lbf444.82 kN N/A
N/A Dytran 1022V, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 22.5 mV/N100 mV/lbf N/A 50 lbf0.22 kN N/A
N/A Dytran 1050V2, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 23 mV/N100 mV/lbf N/A 50 lbf0.22 kN N/A 50 lbf0.22 kN
N/A Dytran 1050V3, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 11 mV/N50 mV/lbf N/A 100 lbf0.44 kN N/A 100 lbf0.44 kN
N/A Dytran 1050V4, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 2 mV/N10 mV/lbf N/A 500 lbf2.22 kN N/A 500 lbf2.22 kN
N/A Dytran 1050V6, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 0.22 mV/N1 mV/lbf N/A 5000 lbf22.24 kN N/A 500 lbf2.22 kN
N/A Dytran 1051V1, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 112 mV/N500 mV/lbf N/A 10 lbf0.04 kN N/A 10 lbf0.04 kN
N/A Dytran 1051V2, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 23 mV/N100 mV/lbf N/A 50 lbf0.22 kN N/A 50 lbf0.22 kN
N/A Dytran 1051V3, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 11 mV/N50 mV/lbf N/A 100 lbf0.44 kN N/A 100 lbf0.44 kN
N/A Dytran 1051V4, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 2 mV/N10 mV/lbf N/A 500 lbf2.22 kN N/A 500 lbf2.22 kN
N/A Dytran 1051V5, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 1 mV/N5 mV/lbf N/A 1000 lbf4.45 kN N/A 500 lbf2.22 kN
N/A Dytran 1051V6, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 0.22 mV/N1 mV/lbf N/A 5000 lbf22.24 kN N/A 500 lbf2.22 kN
N/A Dytran 1053V1, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 112 mV/N500 mV/lbf N/A 10 lbf0.04 kN N/A 10 lbf0.04 kN
N/A Dytran 1053V2, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 23 mV/N100 mV/lbf N/A 50 lbf0.22 kN N/A 50 lbf0.22 kN
N/A Dytran 1053V4, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 2 mV/N10 mV/lbf N/A 500 lbf2.22 kN N/A 200 lbf0.89 kN
N/A Dytran 1053V5, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 1 mV/N5 mV/lbf N/A 1000 lbf4.45 kN N/A 200 lbf0.89 kN
N/A Dytran 1053V6, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 0.22 mV/N1 mV/lbf N/A 5000 lbf22.24 kN N/A 200 lbf0.89 kN
N/A Dytran 1060V1, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 2 mV/N10 mV/lbf N/A 500 lbf2.22 kN N/A 500 lbf2.22 kN
N/A Dytran 1060V2, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 1 mV/N5 mV/lbf N/A 1000 lbf4.45 kN N/A 1000 lbf4.45 kN
N/A Dytran 1060V3, Integrated Electronic Piezoelectric (IEPE) Force Sensor N/A Quartz, Compression N/A 0.22 mV/N1 mV/lbf N/A 5000 lbf22.24 kN N/A 1000 lbf4.45 kN
