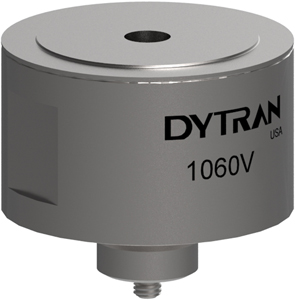

The Dytran 1060V series is a family of IEPE force sensors designed to measure dynamic forces of 500 to 50,000 lbf over a wide frequency range. Offered in six models with available sensitivities from 0.1 to 10 mV/lbf, this dynamic force sensor can measure up to 1,000 lbs full scale in tension mode. As IEPE sensors, the 1060V series features built-in electronics, eliminating the need for an external charge amplifier and converter.

Design of the 1060V series features a quartz sensing element, operating in compression mode and packaged in a rugged stainless steel housing weighing 460 grams. Units utilize a 10-32 axial connector and 3/8-16 tapped hole at the top of the sensor housing.
Unit of Measure

Specifications

Brands

 N/A Dytran

Housing Material

 N/A Stainless Steel

Sensing Element

 N/A Quartz, Compression

Sensitivity

 N/A 0.22 mV/N1 mV/lbf

Measuring Compression Range

 N/A 5000 lbf22.24 kN

Measuring Tension Range

 N/A 1000 lbf4.45 kN

Maximum Compression

 N/A 30000 lbf133.45 kN

Maximum Tension

 N/A 1000 lbf4.45 kN

Temperature Range

 N/A -100 to +250 ºF-73 to +121 ºC

Thermal Coefficient of Sensitivity

 N/A 0.03 %/°F0.06 %/°C

Environmental Seal

 N/A Epoxy

Sensor Type

 N/A Integrated Electronic Piezoelectric (IEPE)

Recommended Mounting Accessories

 N/A One (1) model 6232 mounting stud (supplied)

Recommended Cabling Accessories

 N/A Model 6011A coaxial cable assembly (sold separately)

Weight

 N/A 460 g16.23 oz

Features

 N/A 50,000 lbf Compression Range Axial Connector IEPE Wide Frequency Range

Applications

Applications

 N/A General Purpose Dynamic Force Measurements Modal and structural analysis Press Monitoring Process Control

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres
