Piezoelectric Pressure Sensors On Dytran Instruments, Inc.

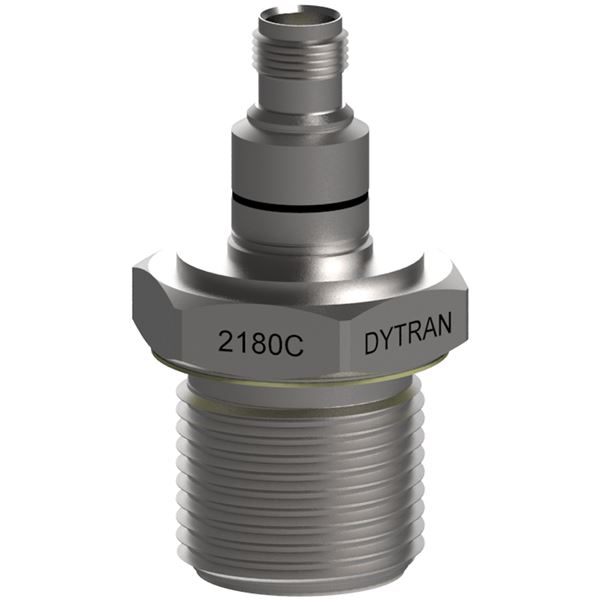

Piezoelectric Pressure Sensors are available as both charge mode and IEPE configurations. Charge Mode Pressure Sensors are a family of high temperature pressure sensors with sensitivity as low as 0.35 pC/psi to as high as 600 pC/psi. The IEPE Pressure Sensors are probe-style miniature pressure sensors used for various applications like high-intensity sound pressure level measurement, dynamic pressure measurement,etc.

Item #	Item Name	Housing Material	Sensitivity	Measuring Pressure Range	Resonant Frequency
2180C	N/A Dytran 2180C, Charge Mode Pressure Sensor	N/A Stainless Steel	N/A 600 pC/psi87 pC/kPa	N/A 10 psi69 kPa	N/A 21 kHz
2200C1	N/A Dytran 2200C1, Charge Mode Pressure Sensor	N/A Stainless Steel	N/A 1 pC/psi0.16 pC/kPa	N/A 100 psi689 kPa	N/A 250 kHz
2200C4	N/A Dytran 2200C4, Charge Mode Pressure Sensor	N/A Stainless Steel	N/A 1 pC/psi0.16 pC/kPa	N/A 1000 psi6895 kPa	N/A 250 kHz
2200C6	N/A Dytran 2200C6, Charge Mode Pressure Sensor	N/A Stainless Steel	N/A 1 pC/psi0.16 pC/kPa	N/A 10000 psi68948 kPa	N/A 250 kHz
2200C7	N/A Dytran 2200C7, Charge Mode Pressure Sensor	N/A Stainless Steel	N/A 1 pC/psi0.16 pC/kPa	N/A 15000 psi103421 kPa	N/A 250 kHz
2300C1	N/A Dytran 2300C1, Charge Mode Pressure Sensor	N/A Stainless Steel	N/A 0.35 pC/psi0.05 pC/kPa	N/A 100 psi689 kPa	N/A 500 kHz
2300C2	N/A Dytran 2300C2, Charge Mode Pressure Sensor	N/A Stainless Steel	N/A 0.35 pC/psi0.05 pC/kPa	N/A 500 psi3447 kPa	N/A 500 kHz
2300C3	N/A Dytran 2300C3, Charge Mode Pressure Sensor	N/A Stainless Steel	N/A 0.35 pC/psi0.05 pC/kPa	N/A 1000 psi6895 kPa	N/A 500 kHz
2300C4	N/A Dytran 2300C4, Charge Mode Pressure Sensor	N/A Stainless Steel	N/A 0.35 pC/psi0.05 pC/kPa	N/A 3000 psi20684 kPa	N/A 500 kHz
2300C5	N/A Dytran 2300C5, Charge Mode Pressure Sensor	N/A Stainless Steel	N/A 0.35 pC/psi0.05 pC/kPa	N/A 5000 psi34474 kPa	N/A 500 kHz
2300C6	N/A Dytran 2300C6, Charge Mode Pressure Sensor	N/A Stainless Steel	N/A 0.35 pC/psi0.05 pC/kPa	N/A 10000 psi68948 kPa	N/A 500 kHz
2300C7	N/A Dytran 2300C7, Charge Mode Pressure Sensor	N/A Stainless Steel	N/A 0.35 pC/psi0.05 pC/kPa	N/A 15000 psi103421 kPa	N/A 500 kHz
2301C1	N/A Dytran 2301C1, Charge Mode Pressure Sensor	N/A Titanium	N/A 0.35 pC/psi0.05 pC/kPa	N/A 100 psi689 kPa	N/A 500 kHz
2301C2	N/A Dytran 2301C2, Charge Mode Pressure Sensor	N/A Titanium	N/A 0.35 pC/psi0.05 pC/kPa	N/A 500 psi3447 kPa	N/A 500 kHz
2301C3	N/A Dytran 2301C3, Charge Mode Pressure Sensor	N/A Titanium	N/A 0.35 pC/psi0.05 pC/kPa	N/A 1000 psi6895 kPa	N/A 500 kHz
2301C5	N/A Dytran 2301C5, Charge Mode Pressure Sensor	N/A Titanium	N/A 0.35 pC/psi0.05 pC/kPa	N/A 5000 psi34474 kPa	N/A 500 kHz
2301C6	N/A Dytran 2301C6, Charge Mode Pressure Sensor	N/A Titanium	N/A 0.35 pC/psi0.05 pC/kPa	N/A 10000 psi68948 kPa	N/A 500 kHz
2301C7	N/A Dytran 2301C7, Charge Mode Pressure Sensor	N/A Titanium	N/A 0.35 pC/psi0.05 pC/kPa	N/A 15000 psi103421 kPa	N/A 500 kHz
2006V2	N/A Dytran 2006V2, Integrated Electronic Piezoelectric (IEPE) Pressure Sensor	N/A Stainless Steel	N/A 50 mV/psi7.3 mV/kPa	N/A 100 psi689 kPa	N/A 90 kHz
2013D	N/A Dytran 2013D, Integrated Electronic Piezoelectric (IEPE) Pressure Sensor	N/A Titanium	N/A 2000 mV/psi	N/A 2.5 psi17 kPa	N/A 50 kHz
2200V1	N/A Dytran 2200V1, Integrated Electronic Piezoelectric (IEPE) Pressure Sensor	N/A Stainless Steel	N/A 50 mV/psi7.3 mV/kPa	N/A 100 psi689 kPa	N/A 300 kHz
2300V1	N/A Dytran 2300V1, Integrated Electronic Piezoelectric (IEPE) Pressure Sensor	N/A Stainless Steel	N/A 20 mV/psi2.9 mV/kPa	N/A 250 psi1724 kPa	N/A 500 kHz
2300V3	N/A Dytran 2300V3, Integrated Electronic Piezoelectric (IEPE) Pressure Sensor	N/A Stainless Steel	N/A 10 mV/psi1.45 mV/kPa	N/A 500 psi3447 kPa	N/A 500 kHz
2300V4	N/A Dytran 2300V4, Integrated Electronic Piezoelectric (IEPE) Pressure Sensor	N/A Stainless Steel	N/A 5 mV/psi0.73 mV/kPa	N/A 1000 psi6895 kPa	N/A 500 kHz
2300V5	N/A Dytran 2300V5, Integrated Electronic Piezoelectric (IEPE) Pressure Sensor	N/A Stainless Steel	N/A 1 mV/psi0.15 mV/kPa	N/A 5000 psi34474 kPa	N/A 500 kHz
