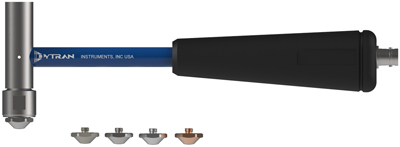

  • Dytran 5800B2, Integrated Electronic Piezoelectric (IEPE) Impulse Hammer
The Dytran series of IEPE Impulse Hammers are used to excite structures or machinery with a definable impulse force. The impulse is used to identify resonances, an important measurement parameter for the study of dynamic behavior, as well as to help determine the overall structural health of a test specimen.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Sensing Element

Sensitivity

Measuring Force Range for Sensor

Maximum Force

N/A Dytran 5800B3, Integrated Electronic Piezoelectric (IEPE) Impulse Hammer N/A Quartz N/A 11 mV/N50 mV/lbf N/A 100 lbf0.44 kN N/A 1000 lbf4.45 kN
N/A Dytran 5800B4, Integrated Electronic Piezoelectric (IEPE) Impulse Hammer N/A Quartz N/A 2 mV/N10 mV/lbf N/A 500 lbf2.22 kN N/A 1000 lbf4.45 kN
N/A Dytran 5800SL, Integrated Electronic Piezoelectric (IEPE) Impulse Hammer N/A Quartz N/A 23 mV/N100 mV/lbf N/A 50 lbf0.22 kN N/A 75 lbf0.33 kN
N/A Dytran 5802A, Integrated Electronic Piezoelectric (IEPE) Impulse Hammer N/A Quartz N/A 0.22 mV/N1 mV/lbf N/A 5000 lbf22.24 kN N/A 10000 lbf44.48 kN
N/A Dytran 5803A, Integrated Electronic Piezoelectric (IEPE) Impulse Hammer N/A Quartz N/A 0.22 mV/N1 mV/lbf N/A 5000 lbf22.24 kN N/A 10000 lbf44.48 kN
N/A Dytran 5805A, Integrated Electronic Piezoelectric (IEPE) Impulse Hammer N/A Quartz N/A 0.22 mV/N1 mV/lbf N/A 5000 lbf22.24 kN N/A 10000 lbf44.48 kN
