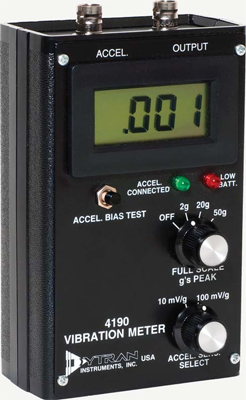

Dytran Series of Vibration Meters are used along with the Sensors, to measure vibration levels with an accuracy of ± 2 %FS and support sensitivities from 10 to 100 mV/g
Unit of Measure

Specifications

Brands

 N/A Dytran

Height

 N/A 5.3 in13.5 cm

Width

 N/A 8.4 cm3.3 in

Depth

 N/A 2.5 in6.4 cm

Input Connector Type

 N/A Bayonet Neill-Concelman (BNC) Jack

Output Connector Type

 N/A Bayonet Neill-Concelman (BNC) Jack

Power Supply Current

 N/A 2 mA

Direct Current (DC) Supply Voltage

 N/A 18 V

Accuracy at 1 Kilohertz (kHz) (±)

 N/A 2 %FS

Operating Temperature Range

 N/A 180 ºF82 ºC

Sensitivities Supported

 N/A 1.0 mV/m/s²10.2 mV/m/s²10 mV/g100 mV/g

Full Scale Ranges Supported

 N/A 2 g20 g50 g19.6 m/s²196 m/s²490 m/s²

Frequency Response

 N/A 20 to 5000 Hz

Weight

 N/A 318 g11.2 oz

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres
