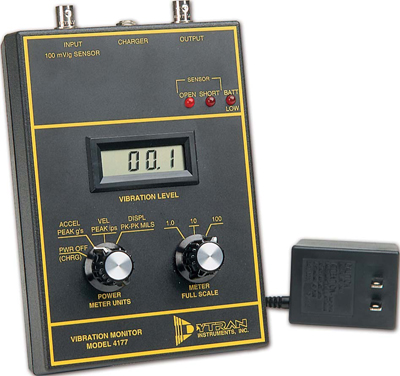

Dytran Series of Vibration Meters are used along with the Sensors, to measure vibration levels with an accuracy of ± 2 %FS and support sensitivities from 10 to 100 mV/g
Unit of Measure

Specifications

Brands

 N/A Dytran

Height

 N/A 1.5 in3.8 cm

Width

 N/A 18.5 cm7.3 in

Depth

 N/A 2.3 in5.8 cm

Input Connector Type

 N/A Bayonet Neill-Concelman (BNC) Jack

Output Connector Type

 N/A Bayonet Neill-Concelman (BNC) Jack

Power Supply Current

 N/A 2 to 4 mA

Direct Current (DC) Supply Voltage

 N/A 28 V

Accuracy at 1 Kilohertz (kHz) (±)

 N/A 2 %FS

Operating Temperature Range

 N/A 180 ºF82 ºC

Sensitivities Supported

 N/A 10.2 mV/m/s²100 mV/g

Full Scale Ranges Supported

 N/A 1 g10 g100 g9.8 m/s²98 m/s²980 m/s²

Frequency Response

 N/A 20 to 9000 Hz

Weight

 N/A 454 g16 oz

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres
