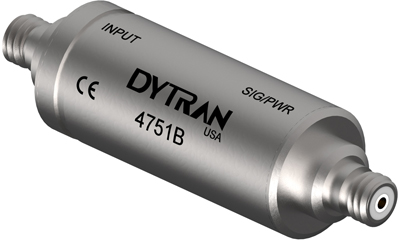

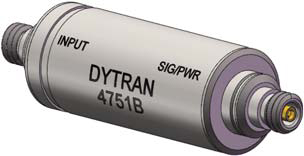

1.8 in Long Dytran Model 4751B4, In-Line Charge Amplifier is used along with Charge Mode Pressure Sensor to measure charge of about 50000 pC.
Unit of Measure

Specifications

Brands

 N/A Dytran

Sensitivity

 N/A 0.1 mV/pC

Charge Range

 N/A 50000 pC

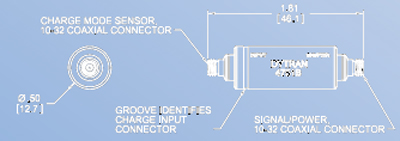

Length

 N/A 1.8 in4.6 cm

Diameter

 N/A 0.5 in1.3 cm

Input Connector Type

 N/A 10-32 Jack

Output Connector Type

 N/A 10-32 Jack

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres
