Request Information

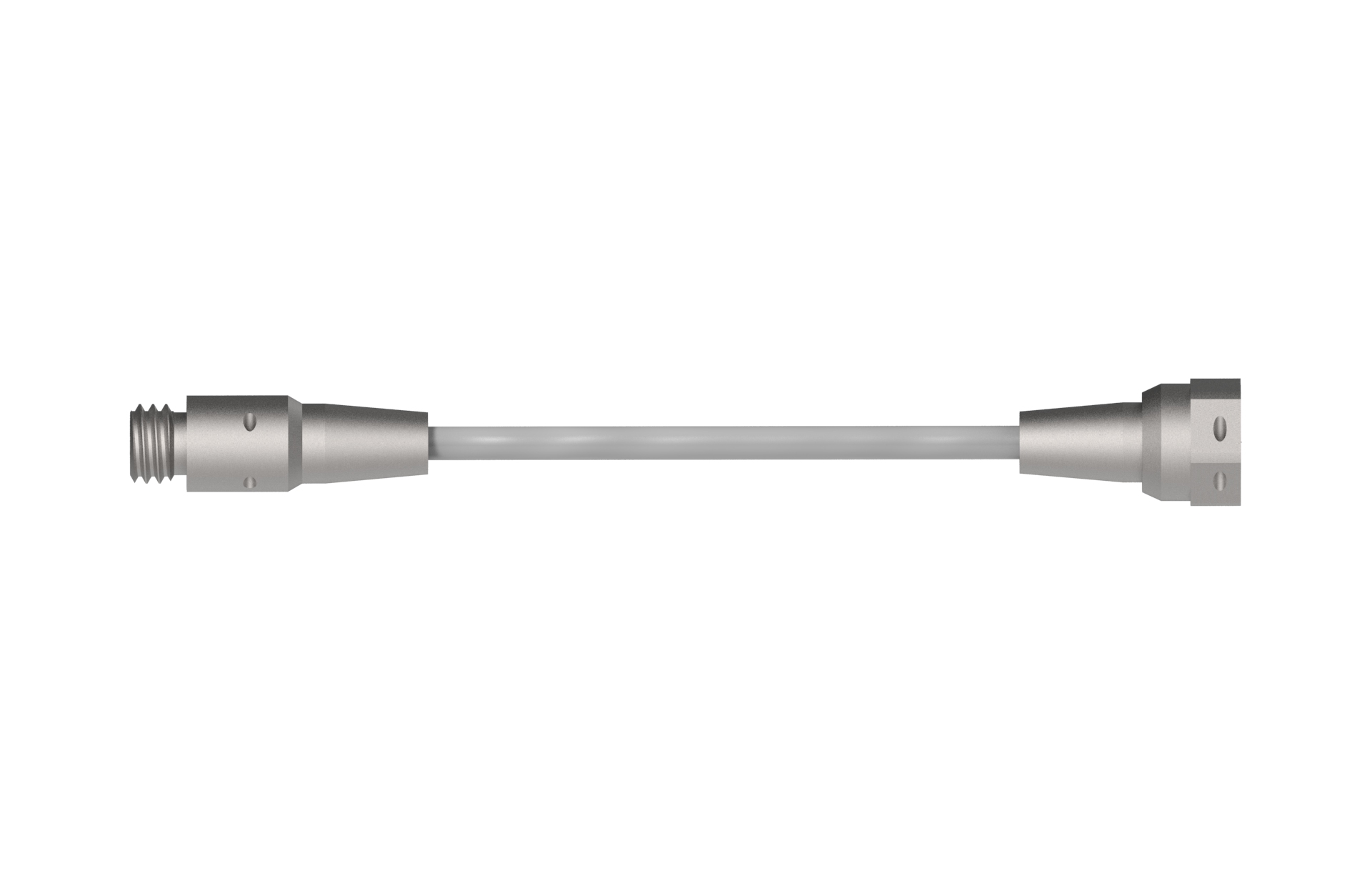

Cables are available in any length. Some cables offering special pricing on 3 standard lengths of three, five and ten feet. The length of the cable, in feet, is added to the series number after the letter "A". Example: Model 6010A10 is a 6010A cable, 10 feet long.
Unit of Measure

Specifications

Brands

 N/A Dytran

Operating Temperature Range

 N/A Maximum on Both of Cable: 1100 ºFMaximum on Both of Cable: 593 ºC

Minimum Bend Radius

 N/A 1.4 Inch

Wire Diameter

 N/A Nominal 0.032

Cable Diameter

 N/A Maximum 0.135

Material

 N/A Cable Insulator: Silicon Dioxide Jacket: 304L SS Nut: 304L SS Pin: 304L SS/Alloy 718 Sleeving: Fiberglass Strain Relief: 304L SS

Weight

 N/A Approximate Per Foot: 2.5 g

Maximum Torque

 N/A 12 lb/in
