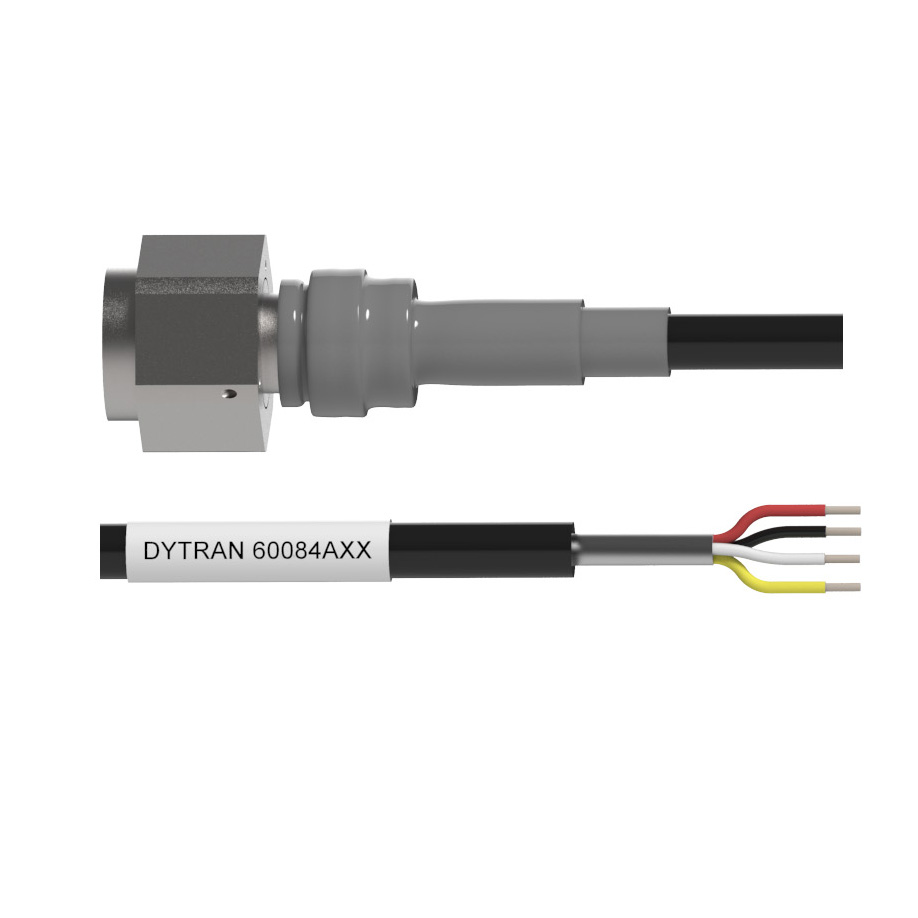

Cables are available in any length. Some cables offering special pricing on 3 standard lengths of three, five and ten feet. The length of the cable, in feet, is added to the series number after the letter "A". Example: Model 6010A10 is a 6010A cable, 10 feet long.
Unit of Measure

Specifications

Brands

 N/A Dytran

Operating Temperature Range

 N/A -321 to 302 ºF-196 to 150 ºC

Jacket Material

 N/A Clear FEP FEP, Black, 0.006/0.015 Wall

Shield Material

 N/A 36 AWG Stainless Steel Braid 90% Minimum Coverage Silver Plated Copper Braid

Conductors

 N/A 30 AWG 7/38 Silver Plated Copper

Diameter

 N/A Ø.095/Ø .105 Outer: Ø.145/Ø.160

Voltage

 N/A 250 V
