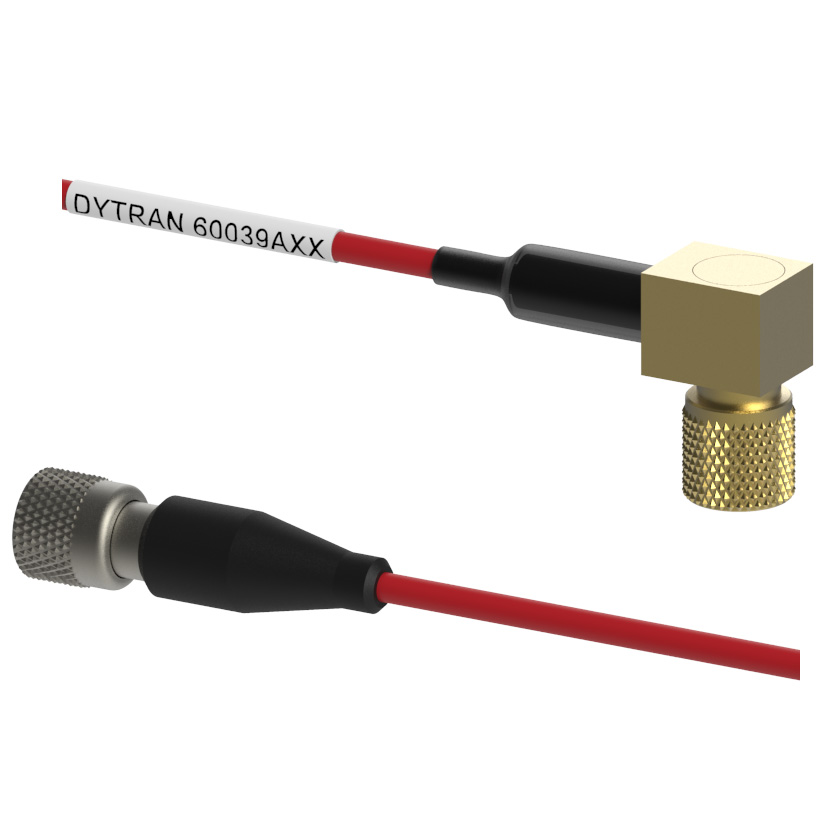

Cables are available in any length. Some cables offering special pricing on 3 standard lengths of three, five and ten feet. The length of the cable, in feet, is added to the series number after the letter "A". Example: Model 6010A10 is a 6010A cable, 10 feet long.
Unit of Measure

Specifications

Brands

 N/A Dytran

Operating Temperature Range

 N/A -67 to 257 ºF-55 to 125 ºC

Jacket Material

 N/A Red PTFE WRAP 0.005 to 0.010 Wall

Shield Material

 N/A 38 AWG Silver Plated Copper Braid Minimum 85% Coverage Ø 0.050 NOM

Diameter

 N/A Ø 0.073 NOM

Wire

 N/A 30 AWG-7/38 Silver Plate

Low Noise WRAP#1

 N/A Carbon Tape

Wire Insulation

 N/A Clear Extruded PTFE Ø 0.032 NOM

Low Noise WRAP #2

 N/A Carbon Tape

Voltage

 N/A 600 V

Output Impedance

 N/A Nominal 50 O

Capacitance

 N/A 28 pF/ft

Temperature

 N/A Wire Rated: 200 ºC
