Brands |
N/A Dytran |
Series |
N/A 4400 |
Length |
N/A 2.40 in60.96 mm |
Width |
N/A 2 in50.7 mm |
Height |
N/A 1 in25.40 mm |
Magnets Pull Rating |
N/A 8.4 lb |
Note for Magnets Pull Rating |
N/A Maximum pull ratings are based on direct contact with rust-free and unpainted iron plate. Variations in material condition will significantly reduce these ratings. |
Color |
N/A Blue |
Maximum Weight |
N/A 5.3 oz150 g |
Mounting |
N/A Screws/magnets |
Housing Material |
N/A Aluminum Anodized |
Peak Acceleration Range (X, Y, Z Directions) ±5% |
N/A 2 g20 m/s² |
-3 Decibel (db) Maximum Frequency Range |
N/A 0 to 1000 Hz |
Resonant Frequency |
N/A >5.5 kHz |
Resonance Frequency |
N/A >5.5 kHz |
Full Scale (F.S.) Linearity (±) |
N/A <2.0 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Linearity is % of specified full scale (or any less full-scale range), zero based best fit straight line method |
Maximum Transverse Sensitivity |
N/A 5 % |
Maximum Noise (rms) |
N/A 0.01 G88 mm/s² |
Maximum Recording Time |
N/A 15 hours |
Sampling Rate |
N/A 100 to 10000 samples/s |
Memory Card Type |
N/A Micro-SDHC (Secure Digital High Capacity) |
Acquisition Type |
N/A Free Run/Triggered/Time |
Discharging Operating Temperature |
N/A -4 to +140 ºF-20 to +60 ºC |
Charging Operating Temperature |
N/A +32 to +113 ºF0 to +45 ºC |
Maximum Peak Shock |
N/A 1000 g9810 m/s² |
Environmental Seal |
N/A Ingress Protection (IP64) |
Note for Environmental Seal |
N/A Molded cover and bottom cover with integral sealing gasket must both be installed to meet IP64 rating. |
Maximum Peak Vibration (±) |
N/A 100 g981 m/s² |
Supplied Accessories |
N/A
|
Device Specifications |
N/A Powered through a rechargeable LiPo battery or external power from 5 VDC (USB port) |
Data Collection Features |
N/A
|
Software Features |
N/A
|
Why We Made This |

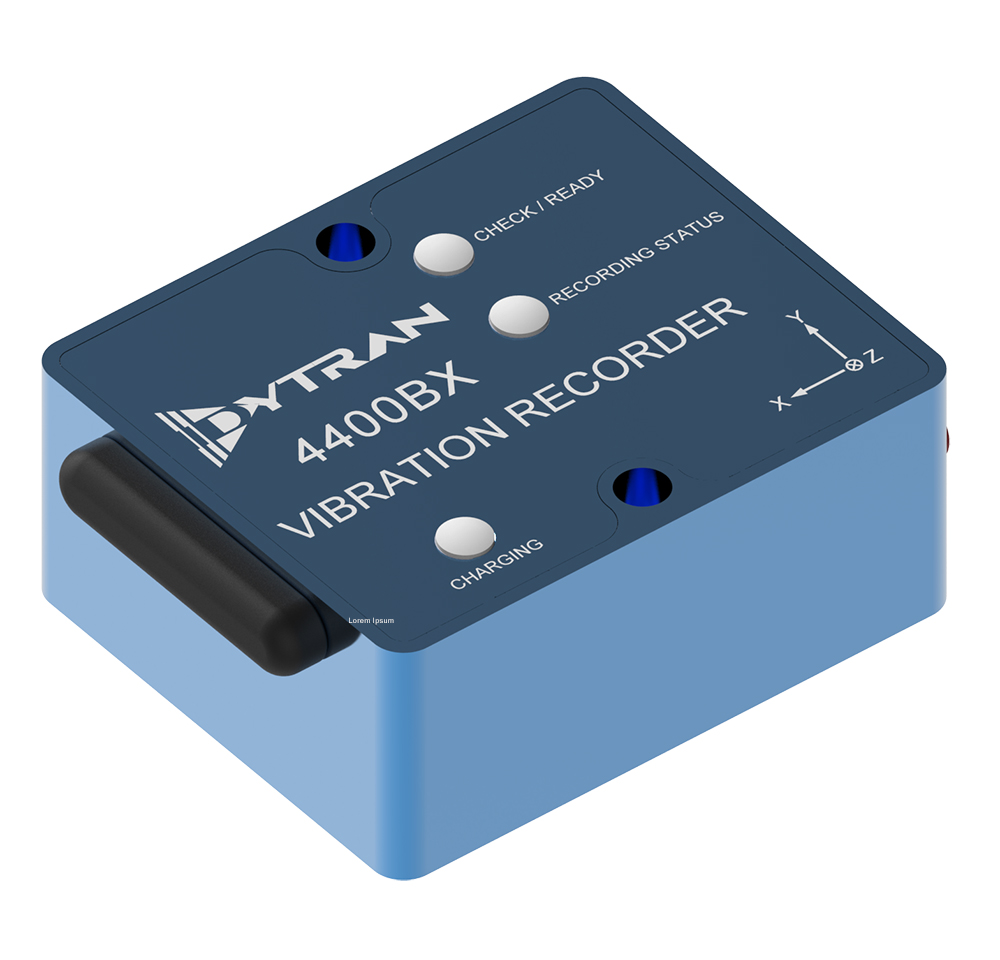

N/A The 4400B1 is a ±2g general purpose vibration recorder designed to capture triaxial acceleration measurements at the press of a button. Some of its innovative features include: immediate retrieval of recorded data from the Micro SD card to the PC, availability of several sampling rates up to 10000 samples/second, data overlay, event comparison, high pass/low pass filtering, robust anti-aliasing filters and many more. |
Features |
N/A
|
