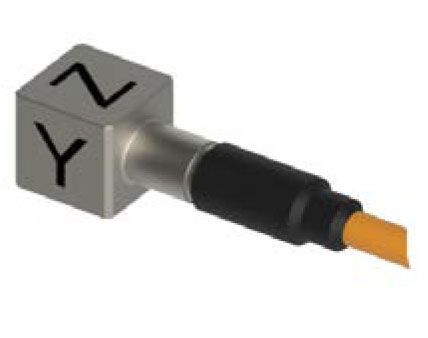

  • Ground Isolated
  • Hermetically Sealed
  • Stud Mount
  • TEDS Capability
  • IP68 Rated, Fully Submersible
Unit of Measure

Specifications

Brands

 N/A Dytran

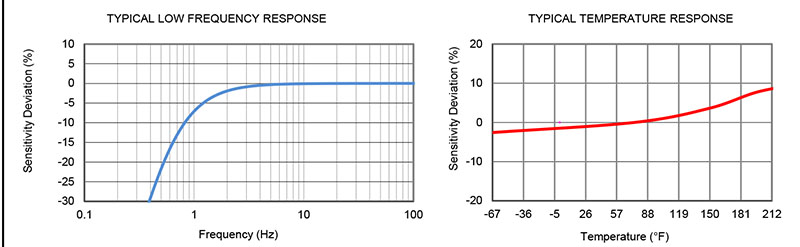

Frequency Response

 N/A 0.9 to 4000 Hz1.4 to 3000 Hz

Electrical Isolation

 N/A >100 MO

Type

 N/A Integrated Electronic Piezoelectric (IEPE)

Number of Axis

 N/A 3

Physical

Housing Material

 N/A Titanium

Maximum Weight (Less Cable)

 N/A 0.6 oz18 g

Mounting Provision

 N/A 10-32 Stud Mount

Housing Isolation

 N/A Case Isolated

Sensing Element Material

 N/A Single Crystal

Sensing Element Mode

 N/A Shear

Integral Cable

 N/A 4 x 28 AWG, Water-Blocked

Note for Integral Cable

 N/A Model number: 3623AXT-XX. "XX" denotes cable length in feet.

Environmental

Maximum Peak Vibration (±)

 N/A 600 g5886 m/s²

Operating Temperature Range

 N/A -67 to 212 ºF-55 to 100 ºC

Environmental Seal

 N/A Hermetic

Maximum Peak Shock (±)

 N/A 1000 g9810 m/s²

Transducer Electronic Data Sheet (TEDS) Operating Temperature

 N/A -40 to +185 ºF-40 to +85 ºC

Base Strain Sensitivity

 N/A 0.002 g/µε0.02 m/s²/µε

Performance

Sensitivity

 N/A 100 mV/g10.2 mV/m/s²

Note for Sensitivity

 N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2.

Frequency Response Tolerance

 N/A ±10 %±5 %

Resonant Frequency

 N/A >15 kHz

Full Scale (F.S.) Linearity (±)

 N/A 1 %

Note for Full Scale (F.S.) Linearity (±)

 N/A Measured using zero-based straight line method, % of F.S. or any lesser range.

Maximum Transverse Sensitivity

 N/A 6 %

Peak Acceleration Range (±)

 N/A 50 g491 m/s²

Root-Mean-Square (RMS) Noise Floor

 N/A 0.007 g0.01 m/s²

Electrical

Note for Power Supply Current

 N/A Do not apply power to this device without current limiting, 20 mA maximum to do so will destroy the integral IC amplifier.

Compliance Voltage Range

 N/A +18 to +30 V

Direct Current (DC) Operating Bias Voltage

 N/A 7 to 12 V

Discharge Time Constant

 N/A 0.4 to 1.5 sec

Transducer Electronic Data Sheet (TEDS) Feature

 N/A IEEE 1451.4

Typical Output Impedance

 N/A 100 O

Note for Transducer Electronic Data Sheet (TEDS) Feature

 N/A TEDS is unlocked version.

Power Supply Current Range

 N/A 2 to 20 mA

Maximum Ambient Pressure

 N/A 175 psi1.21 MPa

Direct current (DC) Output Bias Voltage

 N/A 7.0 to 12.0 V

Supplied Accessories

Supplied Accessories

 N/A
  1. Accredited calibration certificate (ISO 17025).
  2. Mounting stud model 6200, (10-32 to 10-32), qty 1.

Note

Note

 N/A In the interest of constant product improvement, we reserve the right to change specifications without notice.
Units on the line drawing are in inches, units in brackets are in millimeters.
