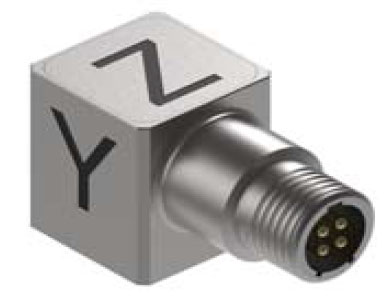

  • Ground Isolated
  • Hermetically Sealed
  • Stud Mount
  • TEDS Feature
Unit of Measure

Specifications

Brands

 N/A Dytran

Frequency Response

 N/A 3.3 to 1000 Hz

Type

 N/A Integrated Electronic Piezoelectric (IEPE)

Number of Axis

 N/A 3

Physical

Housing Material

 N/A 304L Stainless Steel

Maximum Weight

 N/A 1.0 oz28 g

Mounting

 N/A 10-32 United Coarse (UNC-2B)

Connector Type

 N/A 4-Pin Mighty Mouse

Note for Connector Type

 N/A Mates with Glen air connector 800-006-16-Z1-6-4SN. Dytran cable model 6669AXX.

Connector Material

 N/A 304L Stainless Steel

Housing Isolation

 N/A Case Isolated

Sensing Element Material

 N/A Piezoelectric

Sensing Element Mode

 N/A Shear

Environmental

Maximum Peak Shock

 N/A 5000 g49050 m/s²

Maximum Peak Vibration (±)

 N/A 1500 g14715 g

Operating Temperature Range

 N/A -60 to +250 ºF-51 to +121 ºC

Environmental Seal

 N/A Hermetic

Base Strain Sensitivity

 N/A 0.002 g/µε0.02 m/s²/µε

Performance

Sensitivity

 N/A 5 mV/g0.51 mV/m/s²

Note for Sensitivity

 N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2.

Frequency Response Tolerance

 N/A ±5 %

Resonant Frequency

 N/A >50 kHz

Full Scale (F.S.) Linearity (±)

 N/A 1 %

Note for Full Scale (F.S.) Linearity (±)

 N/A Measured using zero-based best straight-line method.

Maximum Transverse Sensitivity

 N/A 6 %

Peak Acceleration Range (±)

 N/A 1000 g9810 m/s²

Frequency Response at ±3 Decibel (dB) Bandwidth

 N/A 1.1 to 6000 Hz

Root-Mean-Square (RMS) Noise Floor

 N/A 0.007 g0.069 m/s²

Root-Mean-Square (RMS) Spectral Noise at 1 Hertz (Hz) Frequency

 N/A 1,000 µg9,810 µm/s²

Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency

 N/A 500 µg4,905 µm/s²

Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency

 N/A 100 µg981 µm/s²

Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency

 N/A 60 µg589 µm/s²

Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency

 N/A 50 µg491 µm/s²

±15 Percent (%) Frequency Range

 N/A 2.2 to 3000 Hz

Electrical

Note for Power Supply Current

 N/A Do not apply power to this device without current limiting, 20 mA maximum to do so will destroy the integral IC amplifier.

Compliance Voltage Range

 N/A +18 to +30 V

Direct Current (DC) Operating Bias Voltage

 N/A 7.0 to 13.0 V

Discharge Time Constant

 N/A 0.15 to 0.5 sec

Transducer Electronic Data Sheet (TEDS) Feature

 N/A IEEE 1451.4

Typical Output Impedance

 N/A 100 O

Power Supply Current Range

 N/A 2 to 20 mA

Supplied Accessories

Supplied Accessories

 N/A
  1. Accredited Calibration Certificate (ISO 17025).
  2. Mounting Stud Model 6200 Supplied, Qty 1

Note

Note

 N/A In the interest of constant product improvement, we reserve the rights to change the specifications without notice. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary overtime. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts.
Units on the line drawing are in inches, units in brackets are in millimeters.
