Brands |
N/A Dytran |

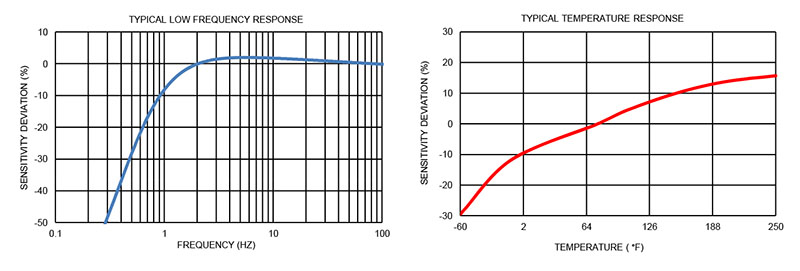

Frequency Response |
N/A 1 to 3,500 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 3 |
Maximum Weight |
N/A 0.5 oz14 g |
Connector Type |
N/A 4-Pin, 1/4 - 28 United Fine (UNF-2A) |
Housing and Connector Material |
N/A Titanium |
Sensing Element Material |
N/A Ceramic |
Temperature Range |
N/A -60 to 250 ºF-51 to 121 ºC |
Maximum Peak Vibration (±) |
N/A 300 g2,943 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 5,000 g49,050 m/s² |
Coefficient of Thermal Sensitivity |
N/A ≤ 0.08 %/°F≤ 0.14 %/°F |
Base Strain Sensitivity at 250 Micro Epsilon (µe) |
N/A 0.008 g/µε0.08 g/µε |
Sensitivity |
N/A 5 mV/g0.5 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Frequency Response Tolerance |
N/A ±10 % |
Resonant Frequency |
N/A >20 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measured using zero-based straight line method, % of F.S. or any lesser range. |
Root-Mean-Square (RMS) Broadband Resolution |
N/A 0.01 g0.1 m/s² |
Maximum Transverse Sensitivity |
N/A 5 % |
Range for ± 1.5 Volts (V) Voltage Output |
N/A 300 g2,943 m/s² |
Power Supply Current |
N/A 0.3 to 0.7 mA |
Note for Power Supply Current |
N/A Do not apply power to this system without current limiting, 0.7 mA MAX. To do so will destroy the IC charge amplifier. |
Compliance Voltage Range |
N/A 6 to 9 V |
Direct Current (DC) Operating Bias Voltage |
N/A 1.5 to 3.0 V |
Discharge Time Constant |
N/A 0.3 to 1.5 sec |
Minimum Electrical Isolation |
N/A 10 GO |
Output Impedance |
N/A < 200 O |
Warm up Time (to 10 Percent (%) of Bias) |
N/A <30 sec |
