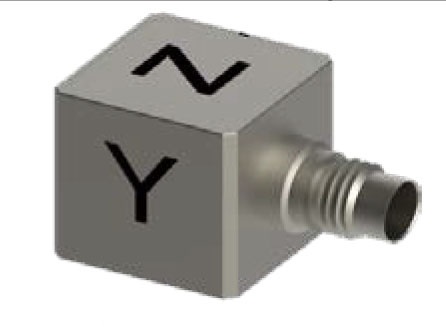

Brands |
N/A Dytran |
Height |
N/A 0.60 in15.2 mm |
Frequency Response |
N/A 2.2 to 5,000 Hz3.3 to 3,000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 3 |
Housing Material |
N/A Titanium (Ti)-6 Alloy (AL)-4V |
Maximum Weight |
N/A 0.5 oz13 g |
Length |
N/A 0.97 in24.6 mm |
Width |
N/A 0.59 in15.0 mm |
Mounting |
N/A Adhesive |
Connector Type |
N/A 4-Pin |
Note for Connector Type |
N/A Glass to Metal seal connector. Mates with Dytran cable Model 6811AXX (XX=length in feet). |
Connector Material |
N/A Titanium (Ti)-6 Alloy (AL)-4V |
Housing Isolation |
N/A Case Isolated |
Sensing Element Material |
N/A Piezoelectric |
Sensing Element Mode |
N/A Shear |

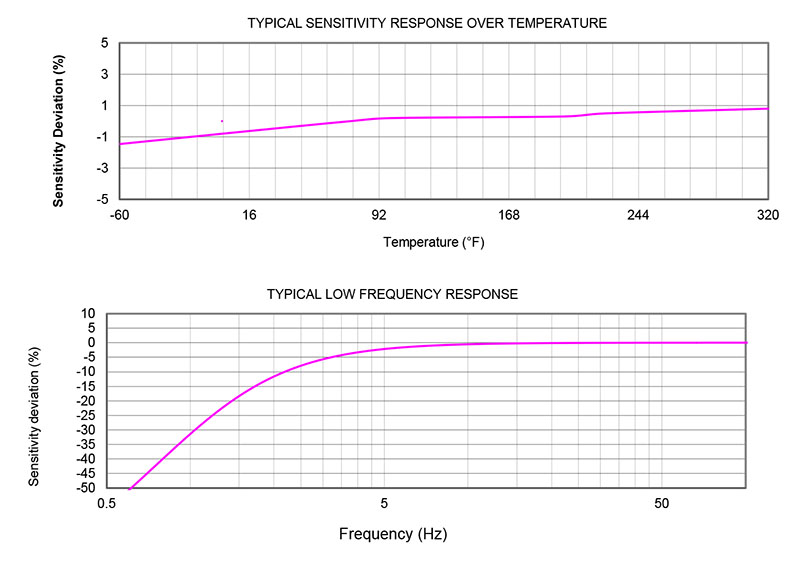

Temperature Range |
N/A -60 to +320 ºF-51 to +160 ºC |
Maximum Peak Vibration (±) |
N/A 1000 g9810 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 5,000 g49,050 m/s² |
Transducer Electronic Data Sheet (TEDS) Operating Temperature |
N/A -40 to +185 ºF-40 to +85 ºC |
Magnetic Sensitivity at 100 Gauss |
N/A 0.0001 g0.000981 m/s² |
Base Strain Sensitivity |
N/A 0.002 g/µε0.01962 m/s²/µε |
Sensitivity |
N/A 50 mV/g5.10 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Frequency Response Tolerance |
N/A ±10 %±5 % |
Resonant Frequency |
N/A >20 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Linearity is % of specified full scale (or any less full-scale range), zero-based best fit straight line method. |
Maximum Transverse Sensitivity |
N/A 6 % |
Peak Acceleration Range (±) |
N/A 100 g981 m/s² |
Frequency Response at ±3 Decibel (dB) Bandwidth |
N/A 1.1 to 10,000 Hz |
Root-Mean-Square (RMS) Noise Floor |
N/A 0.002 g0.020 m/s² |
Root-Mean-Square (RMS) Spectral Noise at 1 Hertz (Hz) Frequency |
N/A 300 µg2,943 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency |
N/A 60 µg589 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency |
N/A 20 µg196 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency |
N/A 10 µg98 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency |
N/A 10 µg98 µm/s² |
Power Supply Current |
N/A 2 to 20 mA |
Note for Power Supply Current |
N/A Do not apply power to this device without current limiting, 20mA Max, to do so will destroy the integral IC amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A +7 to +9 V |
Discharge Time Constant |
N/A 0.15 to 0.25 sec |
Transducer Electronic Data Sheet (TEDS) Feature |
N/A Institute of Electrical and Electronics Engineers (IEEE) 1451.4 |
Typical Output Impedance |
N/A 100 O |
