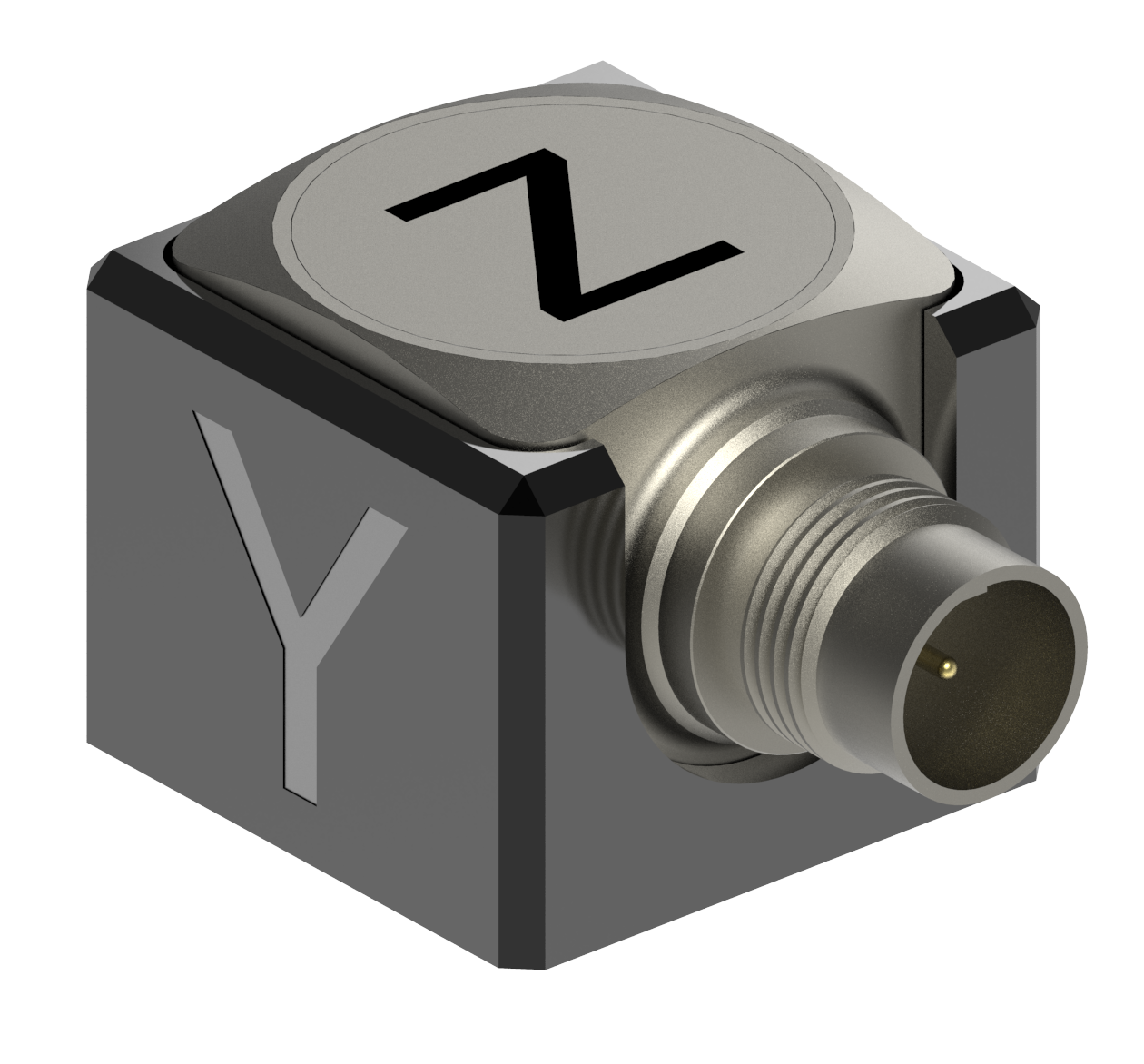

Housing Material |
N/A Ti-6 AL-4V |
Maximum Weight |
N/A 0.14 oz4.0 g |
Mounting |
N/A Adhesive |
Connector Type |
N/A 4-Pin |
Note for Connector Type |
N/A M4.5 X 0.35 Connector. Mates with Dytran cable Model 6893AXX. |
Connector Material |
N/A Ti-6 AL-4V |
Isolation Cup Material |
N/A Anodized Aluminum |
Sensing Element Material |
N/A Ceramic |
Sensing Element Mode |
N/A Shear |
Maximum Peak Shock |
N/A 5000 g49050 m/s² |
Maximum Peak Vibration (±) |
N/A 3000 g29430 m/s² |
Operating Temperature Range |
N/A -60 to +225 ºF-51 to +107 ºC |
Environmental Seal |
N/A Hermetic |
Transducer Electronic Data Sheet (TEDS) Operating Temperature |
N/A -40 to +185 ºF-40 to +85 ºC |
Base Strain Sensitivity |
N/A 0.02 g/µε0.20 m/s²/µε |
Applications |
N/A General purpose triaxial vibration measurements Modal and structural analysis Noise, Vibration and Harshness (NVH) Squeak & Rattle Vibration control |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Resonant Frequency |
N/A >24 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measured using zero-based straight line method, percentage of F.S. or any lesser range. |
Maximum Transverse Sensitivity |
N/A 6 % |
Sensitivity +15/-10% |
N/A 5 mV/g0.51 mV/m/s² |
±5 Volts (V) Peak Acceleration Range |
N/A 1000 g9810 m/s² |
Maximum Root-Mean-Square (RMS) Noise Floor |
N/A 0.0072 g0.071 m/s² |
Root-Mean-Square (RMS) Spectral Noise at 1 Hertz (Hz) Frequency |
N/A 1258 µg12341 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency |
N/A 220 µg2158 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency |
N/A 134 µg1315 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency |
N/A 62 µg608 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency |
N/A 32 µg314 µm/s² |
+15/-10 Percent (%) Frequency Range |
N/A 0.54 to 10,000 Hz |
Note for Power Supply Current |
N/A Do not apply power to this system without current limiting, 20 mA MAX. To do so will destroy the IC charge amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A +11 to +13 V |
Discharge Time Constant |
N/A 0.5 to 1.5 sec |
Transducer Electronic Data Sheet (TEDS) Feature |
N/A IEEE 1451.4 |
Typical Output Impedance |
N/A 100 O |
Power Supply Current Range |
N/A 2 to 20 mA |
Case Isolation |
N/A 10 GO |
Features |
N/A Case isolated version available Extended low frequency response Hermetic Low noise JFET electronic Miniature design TEDS options Titanium Triaxial |
Note |
N/A In the interest of constant product improvement, we reserve the right to change specifications without notice. It is the customer's responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and/or specifications may vary in different applications and performance may vary overtime. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts. Units on the line drawing are in inches, units in brackets are in millimeters. |
