Housing Material |
N/A Ti-6 AL-4V |
Maximum Weight |
N/A 0.08 oz2.4 g |
Mounting |
N/A Adhesive |
Connector Type |
N/A 4-Pin |
Note for Connector Type |
N/A M4.5 X 0.35 Connector. Mates with Dytran cable Model 6893AXX. |
Connector Material |
N/A Ti-6 AL-4V |
Sensing Element Material |
N/A Ceramic |
Sensing Element Mode |
N/A Shear |
Maximum Peak Shock |
N/A 5000 g49050 m/s² |
Maximum Peak Vibration (±) |
N/A 3000 g29430 g |
Operating Temperature Range |
N/A -60 to 180 ºF-51 to 82 ºC |
Environmental Seal |
N/A Hermetic |
Transducer Electronic Data Sheet (TEDS) Operating Temperature |
N/A -40 to +185 ºF-40 to +85 ºC |
Base Strain Sensitivity |
N/A 0.06 g/µε0.59 m/s²/µε |
Sensitivity |
N/A 100 mV/g10.19 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 5 Grms per ISA RP 37.2. |
Resonant Frequency |
N/A >24 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measure using zero-based straight line method, % of F.S. or any lesser range. |
Maximum Transverse Sensitivity |
N/A 6 % |
Peak Acceleration Range (±) |
N/A 50 m/s²491 m/s² |
Maximum Root-Mean-Square (RMS) Noise Floor |
N/A 0.00095 g0.009 m/s² |
Root-Mean-Square (RMS) Spectral Noise at 1 Hertz (Hz) Frequency |
N/A 207 µg2031 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency |
N/A 52 µg510 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency |
N/A 32 µg314 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency |
N/A 11 µg108 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency |
N/A 8 µg78 µm/s² |

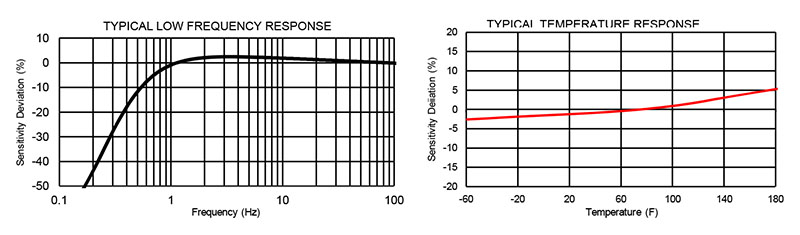

+15/-10 Percent (%) Frequency Range |
N/A 0.65 to 10,000 Hz |
Note for Power Supply Current |
N/A Do not apply power to this device without current limiting, 20 mA maximum to do so will destroy the integral IC amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A +11 to +13 V |
Discharge Time Constant |
N/A 0.5 to 1.5 sec |
Transducer Electronic Data Sheet (TEDS) Feature |
N/A IEEE 1451.4 |
Typical Output Impedance |
N/A 100 O |
Note for Transducer Electronic Data Sheet (TEDS) Feature |
N/A TEDS operational temperature -40ºC to + 85ºC |
Power Supply Current Range |
N/A 2 to 20 mA |
