Brands |
N/A Dytran |

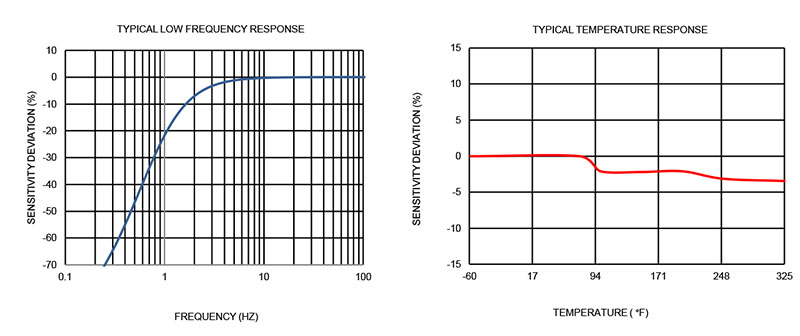

Frequency Response |
N/A 1.2 to 10000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 3 |
Housing Material |
N/A Titanium |
Element Style Material |
N/A Planar Shear Quartz |
Maximum Weight |
N/A 0.14 oz4.1 g |

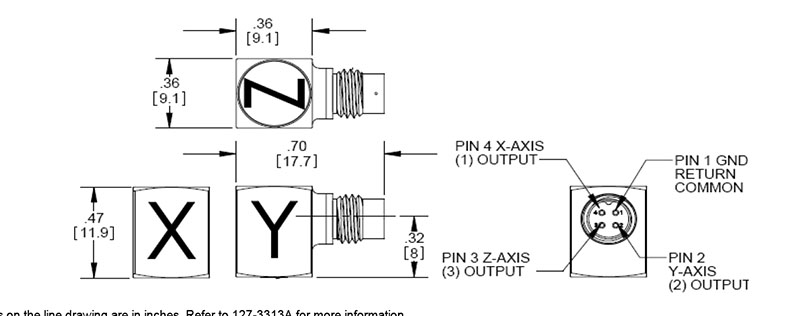

Connector Size |
N/A 1/4-28 |
Connector Type |
N/A 4-Pin |
Note for Connector Type |
N/A Mates with Dytran 6967AXX (XX = Length in feet) |
Connector Material |
N/A Titanium |
Tapped Hole Mounting Provision |
N/A 10 to 32 |
Temperature Range |
N/A -60 to 250 ºF-51 to 121 ºC |
Maximum Peak Vibration (±) |
N/A 7000 g68670 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 5,000 g49,050 m/s² |
Base Strain Sensitivity |
N/A 0.006 g/µε0.06 m/s²/µε |
Sensitivity |
N/A 1.0 mV/g0.10 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Frequency Response Tolerance |
N/A ±15 % |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measure using zero-based straight line method, % of F.S. or any lesser range. |
Maximum Transverse Sensitivity |
N/A 5 % |
Full Scale (F.S.) Range (Each Axis) (±) |
N/A 5000 g49050 m/s² |
Equivalent Natural Frequency |
N/A > 30 kHz |
Maximum Root-Mean-Square (RMS) Equivalent Electrical Noise Resolution |
N/A 0.07 g0.69 m/s² |
Note for Power Supply Current |
N/A Do not apply power to this device without current limiting, 20 mA maximum to do so will destroy the integral IC amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A +7 to +9 V |
Discharge Time Constant |
N/A 0.2 to 1.0 sec |
Typical Output Impedance |
N/A 100 O |
Note for Signal Polarity |
N/A For motion in direction of arrows on housing. |
Ground Isolation |
N/A Case Ground |
Signal Polarity |
N/A Positive |
Power Supply Current Range |
N/A 2 to 20 mA |
