Brands |
N/A Dytran |

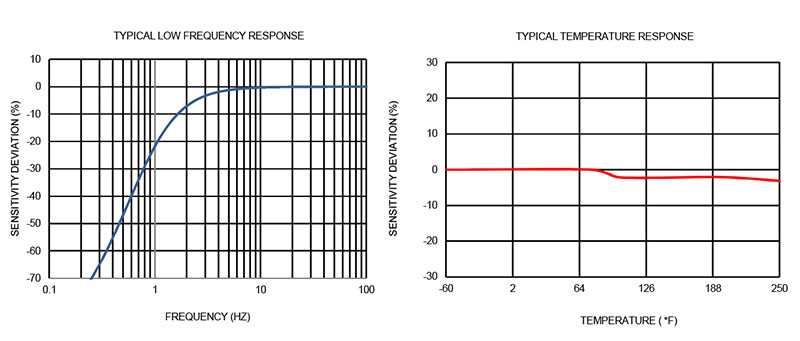

Frequency Response |
N/A 1.2 to 10000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 3 |
Housing Material |
N/A Titanium |
Element Style Material |
N/A Planar Shear Quartz |
Maximum Weight |
N/A 0.14 oz4.1 g |
Connector Size |
N/A 1/4-28 |
Connector Type |
N/A 4-Pin |
Note for Connector Type |
N/A Mates with Dytran 6811AXX or 6824AXX cable (XX = Length in feet) |
Connector Material |
N/A Titanium |
Tapped Hole Mounting Provision |
N/A 10 to 32 |
Temperature Range |
N/A -60 to 250 ºF-51 to 121 ºC |
Maximum Peak Vibration (±) |
N/A 7000 g68670 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 5,000 g49,050 m/s² |
Base Strain Sensitivity |
N/A 0.006 g/µε0.06 m/s²/µε |
Sensitivity |
N/A 1.0 mV/g0.10 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Frequency Response Tolerance |
N/A ±15 % |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measure using zero-based straight line method, % of F.S. or any lesser range. |
Maximum Transverse Sensitivity |
N/A 5 % |
Full Scale (F.S.) Range (Each Axis) (±) |
N/A 5000 g49050 m/s² |
Equivalent Natural Frequency |
N/A > 30 kHz |
Root-Mean-Square (RMS) Equivalent Electrical Noise Resolution |
N/A 0.07 g0.69 m/s² |
Note for Equivalent Electrical Noise Resolution |
N/A Typical, not to exceed 0.10 Grms [0.98 m/s² rms] |
Note for Power Supply Current |
N/A Do not apply power to this device without current limiting, 20 mA maximum to do so will destroy the integral IC amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A +7 to +9 V |
Discharge Time Constant |
N/A 0.2 to 1.0 sec |
Typical Output Impedance |
N/A 100 O |
Note for Signal Polarity |
N/A For motion in direction of arrows on housing. |
Ground Isolation |
N/A Case Ground |
Signal Polarity |
N/A Positive |
Power Supply Current Range |
N/A 2 to 20 mA |
Supplied Accessories |
N/A
|
Note |
N/A
In the interest of constant product improvement, we reserve the right to change specifications without notice. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary overtime. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Units on the line drawing are in inches, units in brackets are in millimeters. |
