Brands |
N/A Dytran |

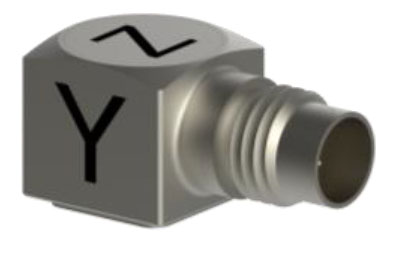

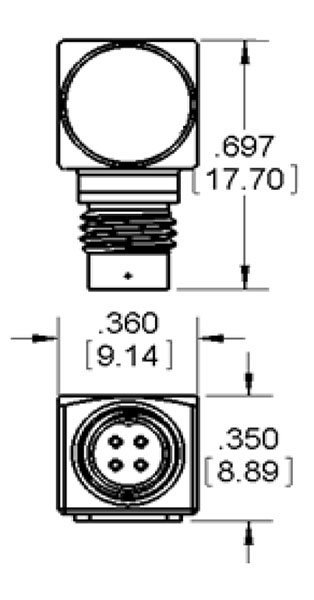

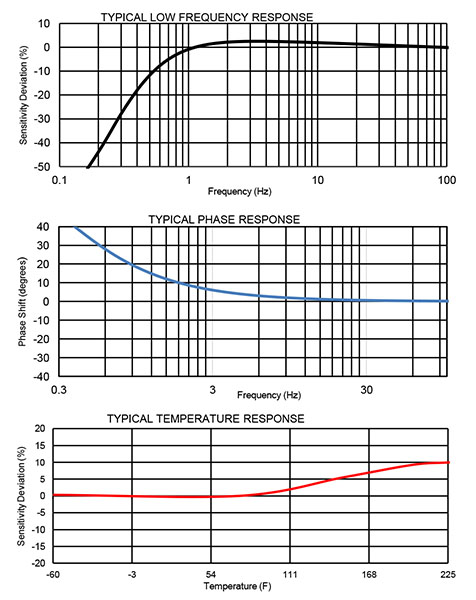

Frequency Response |
N/A 0.5 to 3000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Mounting |
N/A Adhesive |
Connector Type |
N/A 4-Pin |
Note for Connector Type |
N/A Glass to metal Seal connector. Mates with Dytran cable model 6811AXX or 6824AXX (XX=length in feet) |
Weight |
N/A 0.1 oz3.0 g |
Maximum Peak Shock |
N/A 5000 g49050 m/s² |
Maximum Peak Vibration (±) |
N/A 3000 g29430 g |
Operating Temperature Range |
N/A -60 to 225 ºF-51 to 107 ºC |
Environmental Seal |
N/A Hermetic |
Transducer Electronic Data Sheet (TEDS) Operating Temperature |
N/A -40 to +185 ºF-40 to +85 ºC |
Magnetic Sensitivity at 100 Gauss |
N/A 0.000013 g0.00013 m/s² |
Base Strain Sensitivity |
N/A 0.06 g/µε0.59 m/s²/µε |
Sensitivity |
N/A 10 mV/g1.02 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 5 Grms per ISA RP 37.2. |
Frequency Response Tolerance |
N/A ±5 % |
Resonant Frequency |
N/A >24 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Linearity is % of specified full scale (or any less full-scale range), zero-based best fit straight line method. |
Maximum Transverse Sensitivity |
N/A 5 % |
Peak Acceleration Range (±) |
N/A 500 m/s²4905 m/s² |
Maximum Root-Mean-Square (RMS) Noise Floor |
N/A 0.003 g0.029 m/s² |
Root-Mean-Square (RMS) Spectral Noise at 1 Hertz (Hz) Frequency |
N/A 629 µg6166 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency |
N/A 110 µg1074 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency |
N/A 67 µg657 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency |
N/A 31 µg304 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency |
N/A 16 µg157 µm/s² |
±15 Percent (%) Frequency Range |
N/A 0.3 to 10,000 Hz |
± 5 Degree (º) Phase Response |
N/A 2.3 to 3000 Hz |
Note for Power Supply Current |
N/A Do not apply power to this device without current limiting, 20 mA maximum to do so will destroy the integral IC amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A +11 to +13 V |
Discharge Time Constant |
N/A 0.5 to 1.5 sec |
Transducer Electronic Data Sheet (TEDS) Feature |
N/A IEEE 1451.4 |
Typical Output Impedance |
N/A 100 O |
Power Supply Current Range |
N/A 2 to 20 mA |
