Brands |
N/A Dytran |

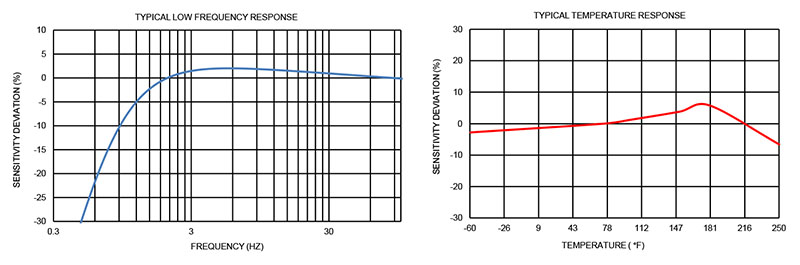

Frequency Response |
N/A 0.3 to 10,000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Housing Material |
N/A Titanium |

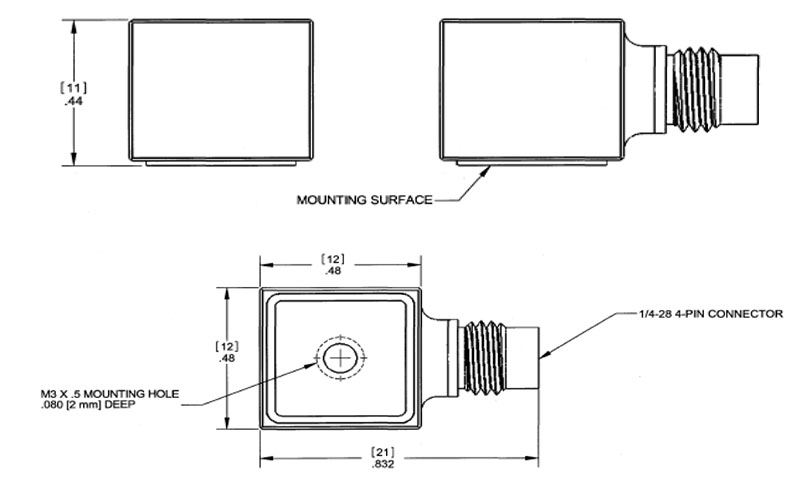

Mounting Provision |
N/A M3 x 0.5 |
Connector Type |
N/A 4-Pin |
Connector Material |
N/A Titanium |
Sensing Element Material |
N/A Ceramic |
Sensing Element Mode |
N/A Shear |
Weight |
N/A 0.19 oz5.5 g |
Temperature Range |
N/A -60 to 225 ºF-51 to 107 ºC |
Maximum Peak Vibration (±) |
N/A 600 g5886 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 5,000 g49,050 m/s² |
Transducer Electronic Data Sheet (TEDS) Operating Temperature |
N/A -40 to +185 ºF-40 to +85 ºC |
Sensitivity |
N/A 100 mV/g10.2 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Full Scale (F.S.) Range for ± 5 Volts (V) Voltage Output |
N/A ± 50 g± 490 m/s² |
Frequency Response Tolerance |
N/A +15 %-5 % |
Resonant Frequency |
N/A >45 kHz |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measured using zero-based best straight-line method, % of F.S. or any lesser range. |
Maximum Transverse Sensitivity |
N/A 5 % |
Root-Mean-Square (RMS) Spectral Noise at 1 Hertz (Hz) Frequency |
N/A 0.001 µg0.0098 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency |
N/A 0.0005 µg0.0049 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency |
N/A 0.0001 µg0.00098 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency |
N/A 0.0001 µg0.00098 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency |
N/A 0.00005 µg0.00049 µm/s² |
Root-Mean-Square (RMS) Equivalent Electrical Noise Resolution |
N/A 0.0095 g0.009 m/s² |
Maximum Full Scale (F.S.) Linearity |
N/A ± 1 % |
Note for Power Supply Current |
N/A Do not apply power to this device without current limiting, 20 mA maximum to do so will destroy the integral IC amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A +11 to +13 V |
Discharge Time Constant |
N/A 1.2 to 2.2 sec |
Typical Output Impedance |
N/A 100 O |
Power Supply Current Range |
N/A 2 to 20 mA |
Integrated Electronic Piezoelectric (IEPE) Sensor with Transducer Electronic Data Sheet (TEDS) Feature |
N/A IEEE 1451.4 |
