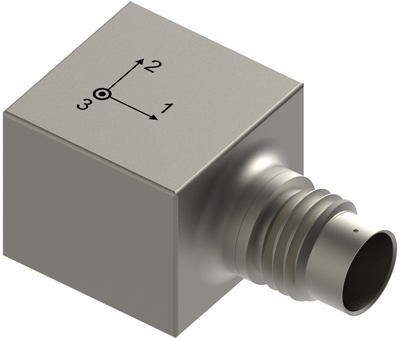

The Dytran 3263AT series is a family of miniature IEPE triaxial accelerometers with built-in TEDS capabilities (per IEEE 1451.4) and an overall weight of 5.6 grams.

Available in three sensitivities of 10, 50 and 100 mV/g, design of the Dytran 3263AT series features ceramic shear sensing elements, coupled with low-noise electronics and packaged in a lightweight titanium housing. The accelerometers offer a broad frequency response with a 4-pin radial connector and 4-40 stud mounting. Units are hermetically sealed for reliable operation in harsh and dirty environments.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A Triaxial

Measuring Acceleration Range

 N/A 100 g981 m/s²

Frequency Response

 N/A 1.5 to 10000 Hz

Frequency Response Gain

 N/A -10 dB+10 dB

Spectral Noise

 N/A G

Electrical Isolation

 N/A No

Maximum Shock

 N/A 5000 g49033 m/s²

Recommended Mounting Accessories

 N/A One (1) model 6721 (4-40 to 4-40) mounting stud (supplied)

Recommended Cabling Accessories

 N/A Model 6811A coaxial cable assembly (sold separately)

Physical

Housing Material

 N/A Titanium

Sensing Element

 N/A Ceramic, Shear

Weight

 N/A 0.2 oz

Environmental

Temperature Range

 N/A -60 to 180 ºF-51 to +82 ºC

Thermal Coefficient of Sensitivity

 N/A 0.07 %/°F0.14 %/°C

Environmental Seal

 N/A Hermetic

Applications

Applications

 N/A General purpose triaxial vibration measurements Modal and structural analysis Noise, Vibration and Harshness (NVH) Squeak & Rattle Vibration control

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Performance

Sensitivity

 N/A 5 mV/m/s²

Features

Features

 N/A IEPE Lightweight Low Noise TEDS Capabilities Triaxial
