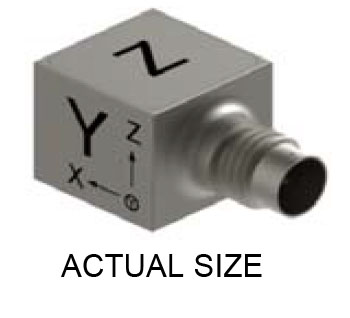

Brands |
N/A Dytran |

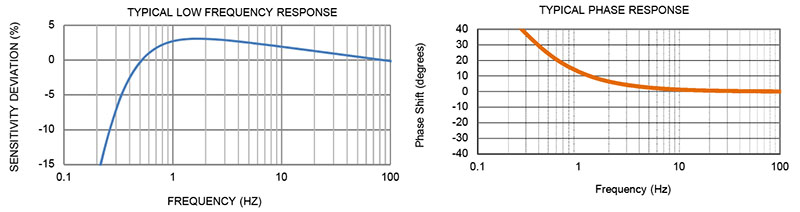

Frequency Response |
N/A 0.3 to 10,000 Hz0.5 to 4,000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 3 |
Maximum Weight |
N/A 0.2 oz5.6 g |
Connector Type |
N/A 4-Pin |
Note for Connector Type |
N/A Connector mates with Dytran cable assembly Model 6811AXX (XX= length in feet) |
Sensing Element Material |
N/A Ceramic |
Sensing Element Mode |
N/A Shear |
Integral Thread Mounting Provision |
N/A 4-40 United Coarse (UNC-2B) |
Temperature Range |
N/A -60 to 250 ºF-51 to 121 ºC |
Maximum Peak Vibration (±) |
N/A 300 g2,943 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 5,000 g49,050 m/s² |
Sensitivity |
N/A 20 mV/g2.04 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Full Scale (F.S.) Range for ± 5 Volts (V) Voltage Output |
N/A ± 250 g± 2450 m/s² |
Frequency Response Tolerance |
N/A ±5 %-10 to +15 % |
Resonant Frequency |
N/A >40 kHz |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measured using zero-based best straight-line method, % of F.S. or any lesser range. |
Maximum Transverse Sensitivity |
N/A 6 % |
Root-Mean-Square (RMS) Spectral Noise at 1 Hertz (Hz) Frequency |
N/A 500 µg4905 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency |
N/A 250 µg2453 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency |
N/A 50 µg491 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency |
N/A 45 µg441 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency |
N/A 25 µg245 µm/s² |
± 5 Degree (º) Phase Response |
N/A 2 to 3000 Hz |
Maximum Full Scale (F.S.) Linearity |
N/A ± 1 % |
Note for Power Supply Current |
N/A Do not apply power to this device without current limiting, 20 mA maximum to do so will destroy the integral IC amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A +11 to +13 V |
Discharge Time Constant |
N/A 1.0 to 2.0 sec |
Typical Output Impedance |
N/A 100 O |
Power Supply Current Range |
N/A 2 to 20 mA |
