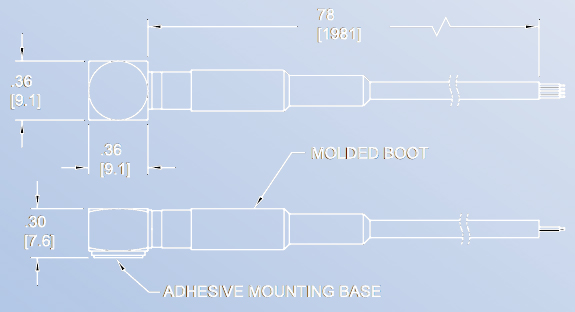

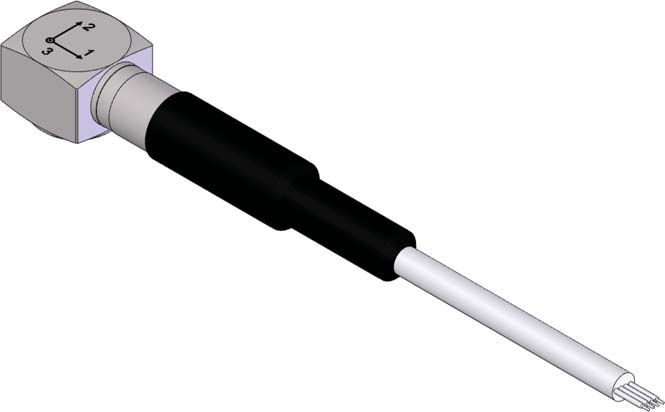

The Dytran model 3243A is a low-profile, moisture resistant triaxial IEPE accelerometer with an overall height of 0.30 inches and weighing just 2.5 grams.

Featuring titanium construction, a 10 mV/g sensitivity and adhesive mounting, the model 3243A incorporates a 2-meter integral cable with a splash-proof boot at the point of sensor and cable connection. The hermetically sealed cable-to-accelerometer boot seal makes it possible for the sensor to be temporarily submerged during testing. Units are case isolated to avoid EMI/ground loop interference.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A Specialty

Height

 N/A 0.30 in

Measuring Acceleration Range

 N/A 500 g4903 m/s²

Frequency Response

 N/A 1.5 to 10000 Hz

Frequency Response Gain

 N/A -5 dB+5 dB

Spectral Noise

 N/A C

Electrical Isolation

 N/A 1

Maximum Shock

 N/A 5000 g49033 m/s²

Recommended Cabling Accessories

 N/A Integral 2-meter coaxial cable assembly (supplied)

Physical

Housing Material

 N/A Titanium

Sensing Element

 N/A Quartz, Shear

Weight

 N/A 0.09 oz

Environmental

Temperature Range

 N/A -60 to 250 ºF-51 to 121 ºC

Thermal Coefficient of Sensitivity

 N/A 0.03 %/°F0.06 %/°C

Environmental Seal

 N/A Hermetic

Applications

Applications

 N/A Triaxial Vibration Measurements In Damp Conditions

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Performance

Sensitivity

 N/A 1 mV/m/s²

Features

Features

 N/A IEPE Integral Cable Lightweight Low Profile Submersible Triaxial
