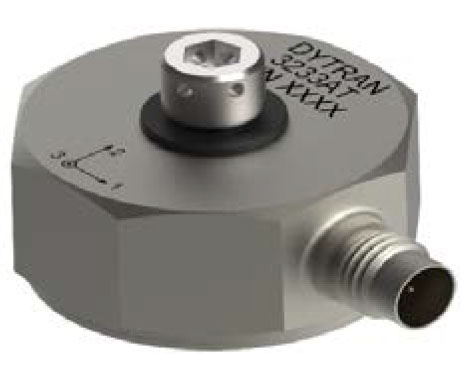

Brands |
N/A Dytran |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 3 |

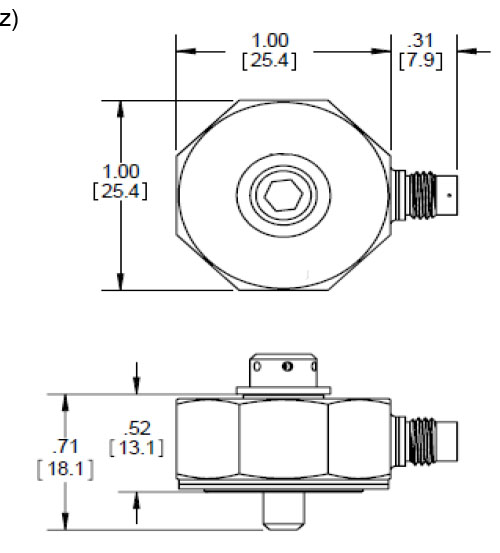

Mounting Provision |
N/A 8 to 32 |
Maximum Weight |
N/A 1.05 oz30 g |
Connector Type |
N/A 4-Pin |
Note for Connector Type |
N/A Connector mates with Dytran Cable Assy. Model 6811 AXX. (XX = Length in feet) |
Connector Material |
N/A Titanium Alloy |
Case Material |
N/A Titanium Alloy |
Peak Full Scale (F.S.) Range (Each Axis) (±) |
N/A 5 g49.1 m/s² |
Maximum Peak Shock |
N/A 5000 g49050 m/s² |
Maximum Peak Vibration (±) |
N/A 500 g4905 g |
Operating Temperature Range |
N/A -60 to 302 ºF-51 to 150 ºC |
Environmental Seal |
N/A Hermetic |
Transducer Electronic Data Sheet (TEDS) Operating Temperature |
N/A -40 to +185 ºF-40 to +85 ºC |
Sensitivity |
N/A 1000 mV/g102 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measured using zero-based best straight-line method, % of F.S. or any lesser range. |
Maximum Transverse Sensitivity |
N/A 5 % |
Root-Mean-Square (RMS) Spectral Noise at 1 Hertz (Hz) Frequency |
N/A 12 µg118 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency |
N/A 4 µg39 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency |
N/A 1.2 µg12 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency |
N/A 0.5 µg5 µm/s² |
Element Natural Frequency |
N/A >20 kHz |
±5 Percent (%) Frequency Range for all Axes |
N/A 0.5 to 3000 Hz |
±10 Percent (%) Frequency Range for Axis 1 and 2 |
N/A 0.3 to 4000 Hz |
±10 Percent (%) Frequency Range for Axis 3 |
N/A 0.3 to 6000 Hz |
Root-Mean-Square (RMS) Equivalent Electrical Noise Resolution |
N/A 0.00005 g0.0005 m/s² |
Note for Power Supply Current |
N/A Do not apply power to this device without current limiting, 20 mA maximum to do so will destroy the integral IC amplifier. |
Direct Current (DC) Operating Bias Voltage |
N/A +11 to +13 V |
Discharge Time Constant |
N/A 0.9 to 2.0 sec |
Transducer Electronic Data Sheet (TEDS) Feature |
N/A IEEE 1451.4 |
Typical Output Impedance |
N/A 100 O |
Power Supply Current Range |
N/A 2 to 20 mA |
Minimum Ground Isolation |
N/A 10 MO |

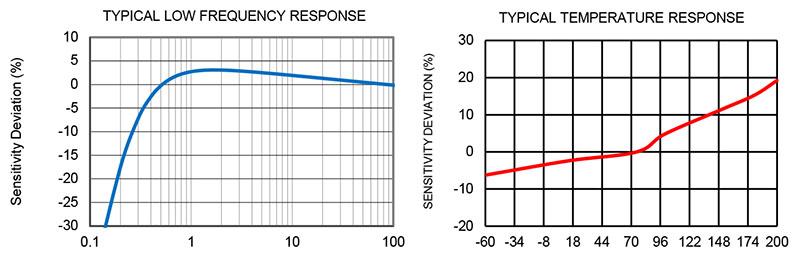

Temperature Range (<3% Deviation) |
N/A 50 to 100 ºF10 to 38 ºC |
Storage Temperature |
N/A -60 to 250 ºF-51 to 121 ºC |
Direct Current (DC) Compliance Voltage Range (Each Axis) |
N/A 18 to 30 V |
Note for Minimum Ground Isolation |
N/A Case grounded to signal ground. Case isolated from mounting surface |
