Brands |
N/A Dytran |

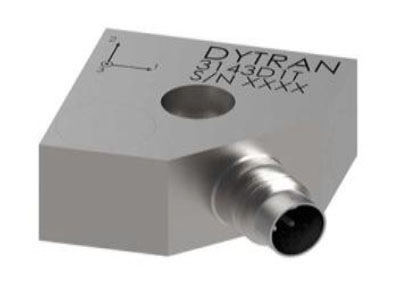

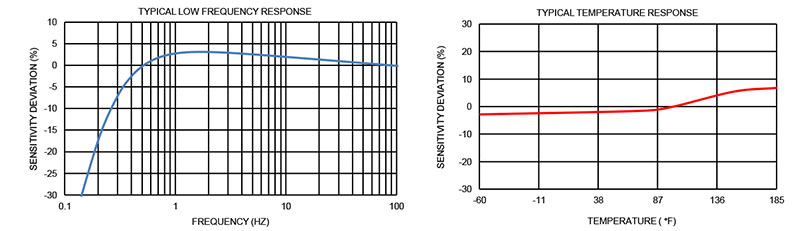

Frequency Response |
N/A 0.4 to 3,000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Connector Pins |
N/A 4 |
Note for Connector Pins |
N/A Radially Mounted, 4-pin connector. Mates with Dytran cable Model 6811A |

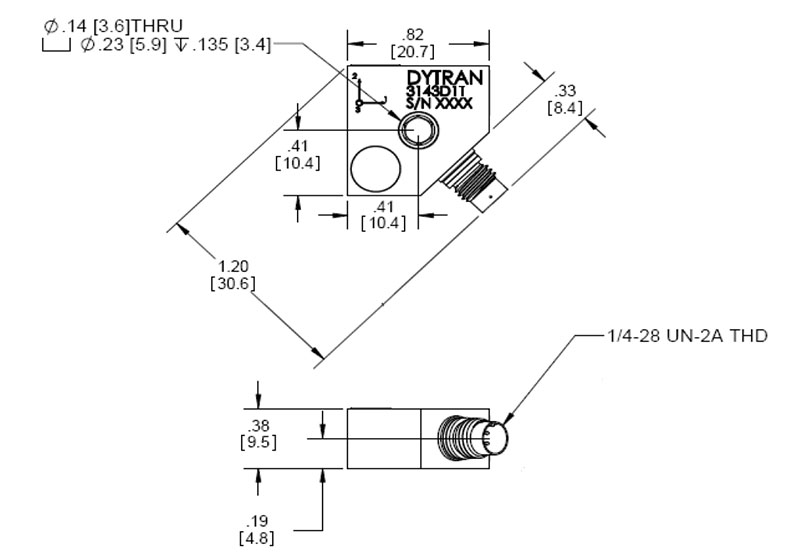

Thru Hole Mounting Provision |
N/A 6-32 Mounting Screw |
Housing and Connector Material |
N/A Titanium |
Sensing Element Material |
N/A Ceramic |
Element Style Type |
N/A Planar Shear |
Weight |
N/A 0.53 oz15 g |
Maximum Peak Vibration (±) |
N/A 600 g5886 m/s² |
Operating Temperature Range |
N/A -60 to 185 ºF-51 to 85 ºC |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 1,500 g14,715 m/s² |
Transducer Electronic Data Sheet (TEDS) Operating Temperature |
N/A -40 to +185 ºF-40 to +85 ºC |
Survival Temperature Range |
N/A -100 to 225 ºF-73 to 107 ºC |
Base Strain Sensitivity at 250 Micro Epsilon (µe) |
N/A 0.012 g/µε0.12 g/µε |
Sensitivity |
N/A 100 mV/g10 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Frequency Response Tolerance |
N/A ±5 % |
Resonant Frequency |
N/A >25 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measure using zero-based straight line method, % of F.S. or any lesser range. |
Root-Mean-Square (RMS) Broadband Resolution |
N/A 0.0007 g0.007 m/s² |
Maximum Transverse Sensitivity |
N/A 5 % |
Peak Range for ± 5 Volts (V) Voltage Output |
N/A 50 g491 m/s² |
Power Supply Current |
N/A 2 to 20 mA |
Note for Power Supply Current |
N/A Do not apply power to this system without current limiting, 20 mA MAX. To do so will destroy the IC charge amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A +11 to +13 V |
Discharge Time Constant |
N/A 1 to 2 sec |
Transducer Electronic Data Sheet (TEDS) Feature |
N/A Institute of Electrical and Electronics Engineers (IEEE) 1451.4 |
Typical Output Impedance |
N/A 100 O |
Minimum Electrical Isolation |
N/A 10 GO |
