Brands |
N/A Dytran |
Frequency Response |
N/A 0.7 to 6,000 Hz0.7 to 10,000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 3 |
Housing Material |
N/A Titanium |
Mounting |
N/A Adhesive |

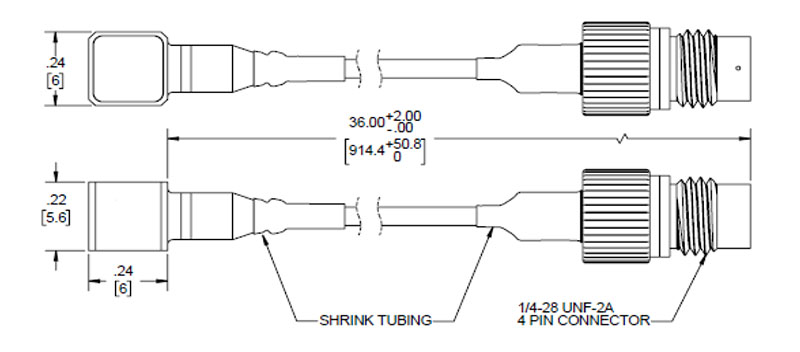

Integral Cable Length |
N/A 3 ft914 mm |
Connector Pins |
N/A 4 |
Housing Isolation |
N/A Case Ground |
Sensing Element Material |
N/A Quartz |
Sensing Element Mode |
N/A Shear |
Weight |
N/A 0.03 oz0.8 g |
Temperature Range |
N/A -67 to +320 ºF-55 to +160 ºC |
Maximum Peak Vibration (±) |
N/A 22,000 g2,15,820 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 25,000 g2,45,250 m/s² |
Magnetic Sensitivity at 100 Gauss |
N/A 0.0002 g0.002 m/s² |
Base Strain Sensitivity |
N/A 0.001 g/µε0.01 m/s²/µε |
Sensitivity |
N/A 0.25 mV/g0.025 mV/m/s² |
Note for Sensitivity |
N/A
Measured at 100 Hz, 10 Grms Actual sensitivity is given on a calibration certificate. |
Frequency Response Tolerance |
N/A ±10 %±5 % |
Resonant Frequency |
N/A >27 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Do not apply power to this device without current limiting, 20mA max, to do so will destroy the integral IC amplifier. |
Peak Acceleration Range (±) |
N/A 20,000 g1,96,200 m/s² |
Transverse Sensitivity |
N/A 6 % |
Maximum Root-Mean-Square (RMS) Noise Floor |
N/A 0.50 g4.91 m/s² |
Power Supply Current |
N/A 2 to 20 mA |
Note for Power Supply Current |
N/A Do not apply power to this device without current limiting, 20 mA MAX. To do so will destroy the integral IC amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A +7 to +9 V |
Discharge Time Constant |
N/A 0.5 to 4.0 sec |
Output Impedance |
N/A 100 O |
