Brands |
N/A Dytran |

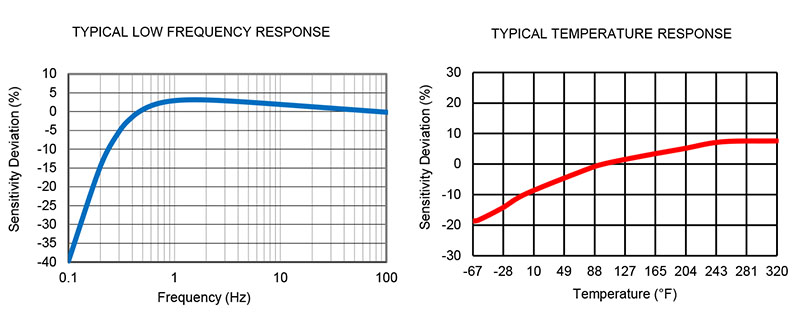

Frequency Response |
N/A 0.25 to 10,000 Hz0.3 to 6,000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 3 |
Housing Material |
N/A Titanium |
Mounting |
N/A Adhesive |
Integral Cable Length |
N/A 3 ft914 mm |
Connector Pins |
N/A 4 |
Housing Isolation |
N/A Case Ground |
Sensing Element Material |
N/A Ceramic |
Sensing Element Mode |
N/A Shear |
Weight |
N/A 0.03 oz0.8 g |
Temperature Range |
N/A -67 to +320 ºF-55 to +160 ºC |
Maximum Peak Vibration (±) |
N/A 900 g8,829 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 3000 g29430 m/s² |
Transducer Electronic Data Sheet (TEDS) Operating Temperature |
N/A -67 to +320 ºF-55 to +160 ºC |
Magnetic Sensitivity at 100 Gauss |
N/A 0.0002 g0.002 m/s² |
Base Strain Sensitivity |
N/A 0.001 g/µε0.01 m/s²/µε |
Sensitivity |
N/A 10 mV/g1.0 mV/m/s² |
Note for Sensitivity |
N/A
Measured at 100 Hz, 10 Grms Actual sensitivity is given on a calibration certificate. |
Frequency Response Tolerance |
N/A ±10 %±5 % |
Resonant Frequency |
N/A >27 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measured using zero-based straight line method, % of F.S. or any lesser range. |
Peak Acceleration Range (±) |
N/A 500 g4905 m/s² |
Transverse Sensitivity |
N/A 6 % |
Maximum Root-Mean-Square (RMS) Noise Floor |
N/A 0.02 g0.2 m/s² |
Power Supply Current |
N/A 2 to 20 mA |
Note for Power Supply Current |
N/A Measured using zero-based straight line method, % of F.S. or any lesser range. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A 8 to 10 V |
Discharge Time Constant |
N/A 1.1 to 2.5 sec |
Transducer Electronic Data Sheet (TEDS) Feature |
N/A Institute of Electrical and Electronics Engineers (IEEE) 1451.4 |
Output Impedance |
N/A 100 O |
