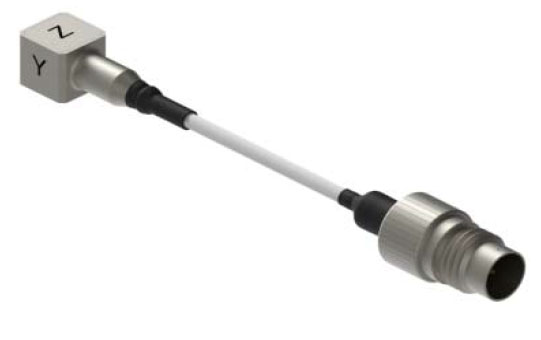

  • Ultra Miniature Size
  • Ideal Low Frequency Response
  • Low Base Strain Sensitivity
  • Hermetically Sealed
  • Low Outgassing
Unit of Measure

Specifications

Brands

 N/A Dytran

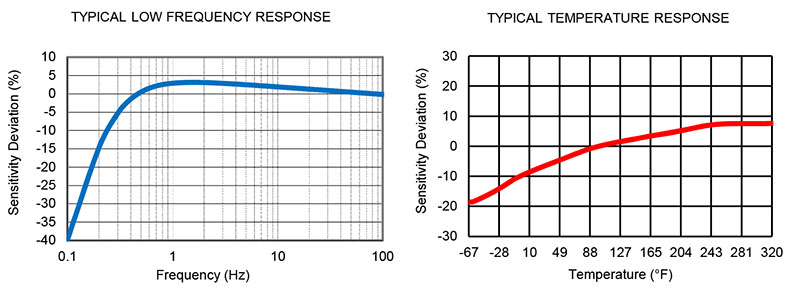

Frequency Response

 N/A 0.25 to 10,000 Hz0.3 to 6,000 Hz

Type

 N/A Integrated Electronic Piezoelectric (IEPE)

Number of Axis

 N/A 3

Physical

Housing Material

 N/A Titanium

Mounting

 N/A Adhesive

Integral Cable Length

 N/A 3 ft914 mm

Connector Pins

 N/A 4

Housing Isolation

 N/A Case Ground

Sensing Element Material

 N/A Ceramic

Sensing Element Mode

 N/A Shear

Weight

 N/A 0.03 oz0.8 g

Environmental

Temperature Range

 N/A -67 to +320 ºF-55 to +160 ºC

Maximum Peak Vibration (±)

 N/A 900 g8,829 m/s²

Environmental Seal

 N/A Hermetic

Maximum Peak Shock (±)

 N/A 3000 g29430 m/s²

Magnetic Sensitivity at 100 Gauss

 N/A 0.0002 g0.002 m/s²

Base Strain Sensitivity

 N/A 0.001 g/µε0.01 m/s²/µε

Performance

Sensitivity

 N/A 10 mV/g1.0 mV/m/s²

Note for Sensitivity

 N/A Measured at 100 Hz, 10 Grms

Actual sensitivity is given on a calibration certificate.

Frequency Response Tolerance

 N/A ±10 %±5 %

Resonant Frequency

 N/A >27 kHz

Full Scale (F.S.) Linearity (±)

 N/A 1 %

Note for Full Scale (F.S.) Linearity (±)

 N/A Measured using zero-based straight line method, % of F.S. or any lesser range.

Peak Acceleration Range (±)

 N/A 500 g4905 m/s²

Transverse Sensitivity

 N/A 6 %

Maximum Root-Mean-Square (RMS) Noise Floor

 N/A 0.02 g0.2 m/s²

Root-Mean-Square (RMS) Spectral Noise at 1 Hertz (Hz) Frequency

 N/A 4,000 µg39,240 µm/s²

Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency

 N/A 2,000 µg19,620 µm/s²

Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency

 N/A 500 µg4,905 µm/s²

Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency

 N/A 200 µg1,962 µm/s²

Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency

 N/A 90 µg883 µm/s²

Electrical

Power Supply Current

 N/A 2 to 20 mA

Note for Power Supply Current

 N/A Measured using zero-based straight line method, % of F.S. or any lesser range.

Compliance Voltage Range

 N/A +18 to +30 V

Direct Current (DC) Operating Bias Voltage

 N/A 8 to 10 V

Discharge Time Constant

 N/A 1.1 to 2.5 sec

Output Impedance

 N/A 100 O

Supplied Accessories

Supplied Accessories

 N/A
  1. Model 6298 small petro wax
    2. .
  2. Model 6741 removal tool
    3. .
  3. Accredited calibration certificate (ISO 17025)

Note

Note

 N/A Do not apply power to this device without current limiting, 20 mA max, to do so will destroy the integral IC amplifier.

Units on the line drawing are in inches, units in brackets are in millimeters.
