Brands |
N/A Dytran |

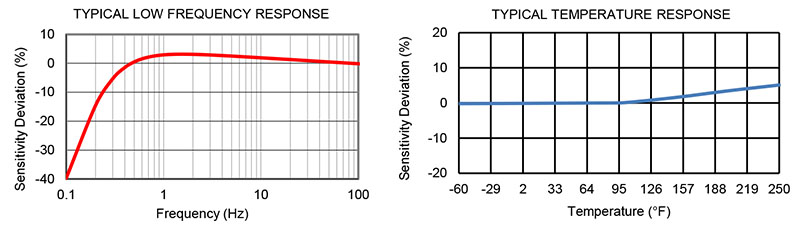

Frequency Response |
N/A 0.25 to 10,000 Hz0.3 to 6,000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 3 |
Housing Material |
N/A Titanium |
Mounting |
N/A Adhesive |

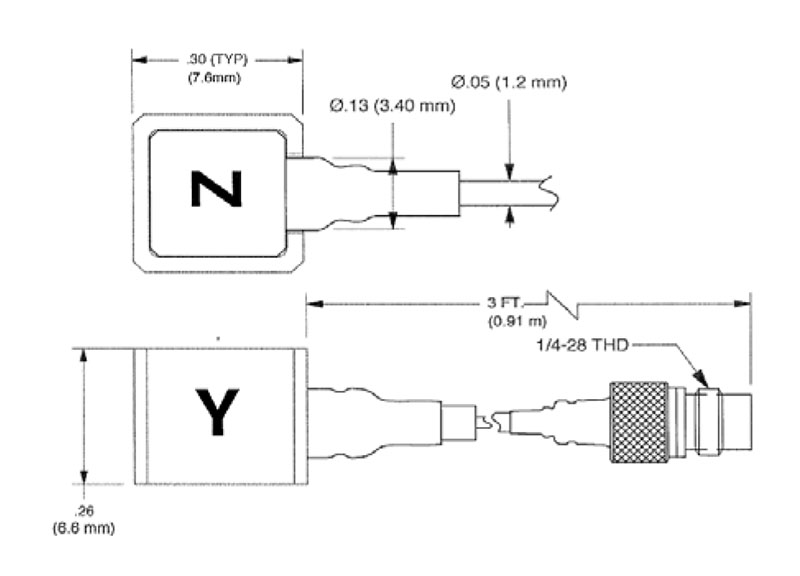

Integral Cable Length |
N/A 3 ft914 mm |
Integral Cable Type |
N/A Tetrafluoroetheylene (TFE) |
Connector Pins |
N/A 4 |
Isolation Cup Material |
N/A Anodized Aluminum (Al) |
Sensing Element Material |
N/A Ceramic |
Sensing Element Mode |
N/A Shear |
Weight |
N/A 0.03 oz0.8 g |
Temperature Range |
N/A -60 to 250 ºF-51 to 121 ºC |
Environmental Seal |
N/A Epoxy |
Peak Vibration (±) |
N/A 1,200 g11,772 m/s² |
Peak Shock (±) |
N/A 5,000 g49,050 m/s² |
Magnetic Sensitivity at 100 Gauss |
N/A 0.00004 g0.00039 m/s² |
Base Strain Sensitivity |
N/A 0.15 g/µε1.47 m/s²/µε |
Sensitivity |
N/A 0.50 mV/g5 mV/g |
Note for Sensitivity |
N/A
Measured at 100 Hz, 10 Grms Actual sensitivity is given on a calibration certificate. |
Frequency Response Tolerance |
N/A ±10 %±5 % |
Resonant Frequency |
N/A >35 kHz |
Peak Acceleration Range (±) |
N/A 1000 g9810 m/s² |
Transverse Sensitivity |
N/A 6 % |
Root-Mean-Square (RMS) Noise Floor |
N/A 0.06 g0.59 m/s² |
Root-Mean-Square (RMS) Spectral Noise at 1 Hertz (Hz) Frequency |
N/A 4,000 µg39,240 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency |
N/A 2,000 µg19,620 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency |
N/A 500 µg4,905 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency |
N/A 200 µg1,962 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency |
N/A 90 µg883 µm/s² |
Power Supply Current |
N/A 2 to 20 mA |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A 8 to 10 V |
Discharge Time Constant |
N/A 1.0 to 2.5 sec |
Minimum Case Isolation |
N/A 10 GO |
Output Impedance |
N/A 100 O |
