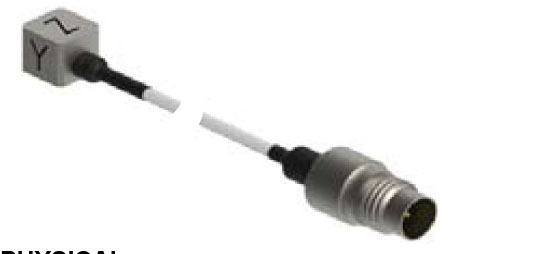

Brands |
N/A Dytran |
Height |
N/A 0.24 in6.1 mm |

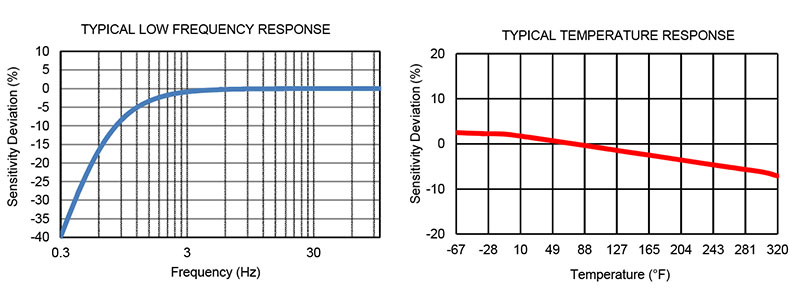

Frequency Response |
N/A 0.7 to 6,000 Hz0.7 to 10,000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 3 |
Housing Material |
N/A Titanium |
Width |
N/A 0.24 in6.1 mm |
Mounting |
N/A Adhesive |

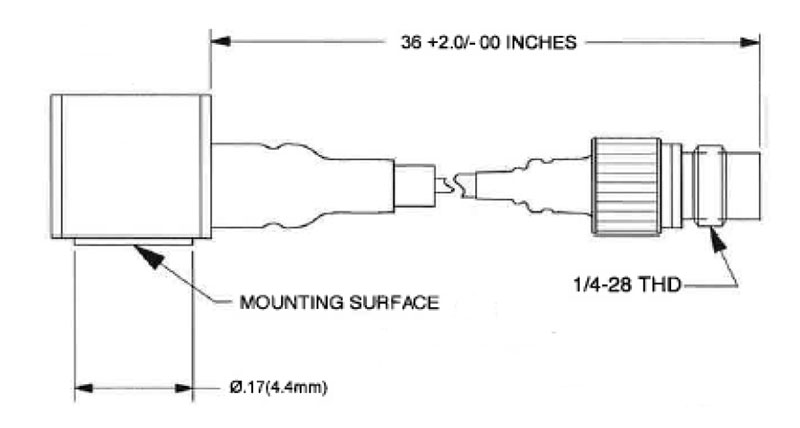

Integral Cable Length |
N/A 3 ft914 mm |
Integral Cable Type |
N/A Tetrafluoroetheylene (TFE) |
Connector Pins |
N/A 4 |
Sensing Element Material |
N/A Quartz |
Sensing Element Mode |
N/A Shear |
Weight |
N/A 0.03 oz0.8 g |
Temperature Range |
N/A -67 to +320 ºF-55 to +160 ºC |
Environmental Seal |
N/A Epoxy |
Peak Vibration (±) |
N/A 22,000 g2,15,820 m/s² |
Peak Shock (±) |
N/A 25,000 g2,45,250 m/s² |
Magnetic Sensitivity at 100 Gauss |
N/A 0.00004 g0.00039 m/s² |
Base Strain Sensitivity |
N/A 0.15 g/µε1.47 m/s²/µε |
Sensitivity |
N/A 0.2 mV/g0.020 mV/m/s² |
Note for Sensitivity |
N/A
Measured at 100 Hz, 10 Grms Actual sensitivity is given on a calibration certificate. |
Frequency Response Tolerance |
N/A ±10 %±5 % |
Resonant Frequency |
N/A >35 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measured using zero-based straight line method, % of F.S. or any lesser range. |
Peak Acceleration Range (±) |
N/A 20,000 g1,96,200 m/s² |
Transverse Sensitivity |
N/A 6 % |
Root-Mean-Square (RMS) Noise Floor |
N/A 0.35 g3.43 m/s² |
Root-Mean-Square (RMS) Spectral Noise at 1 Hertz (Hz) Frequency |
N/A 160,000 µg1,56,9600 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency |
N/A 80,000 µg7,84,800 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency |
N/A 20,000 µg1,96,200 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency |
N/A 8,000 µg78,480 µm/s² |
Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency |
N/A 3,600 µg35,316 µm/s² |
Power Supply Current |
N/A 2 to 20 mA |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A +7 to +9 V |
Discharge Time Constant |
N/A 0.5 to 4.0 sec |
Output Impedance |
N/A 100 O |
