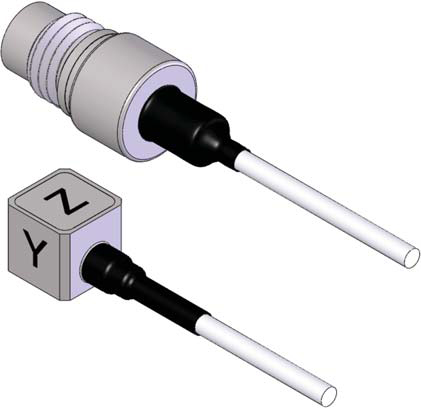

The Dytran 3133A series is a family of ultra-miniature IEPE triaxial accelerometers, weighing just 0.8 grams, and were designed to mount in spaces inaccessible to other types of accelerometers.

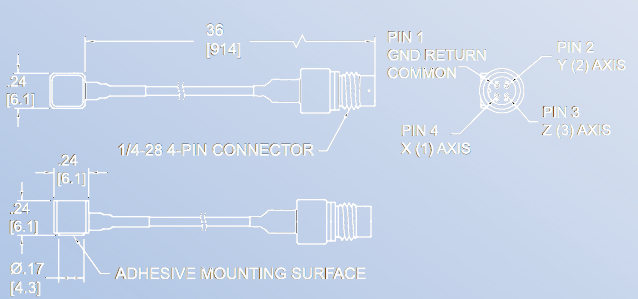

Available in three different models, with choice of 2, 5 or 10 mV/g sensitivity, design of the Dytran 3133A series incorporates shear sensing elements with integral electronics, packaged in a robust, lightweight, welded titanium cube, with a three-foot integral cable terminating to a 4-pin connector and adhesive mounting capabilities. The cable is designed to mate with several different types of Dytran extension cables.

These ultra-miniature teardrop sensors are capable of operating at temperatures up to +300°F (+149°C). Series model 3133A1 is the world’s smallest triaxial IEPE accelerometer with 10 mV/g sensitivity.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A Triaxial

Height

 N/A 0.32 in

Measuring Acceleration Range

 N/A 2500 g24517 m/s²

Frequency Response

 N/A 0.7 to 7000 Hz

Frequency Response Gain

 N/A -10 dB+10 dB

Spectral Noise

 N/A C

Electrical Isolation

 N/A No

Maximum Shock

 N/A 3000 g29420 m/s²

Recommended Mounting Accessories

 N/A One (1) model 6298 mounting wax (supplied), one (1) model 6741 removal tool (supplied)

Recommended Cabling Accessories

 N/A Integral 3-foot coaxial cable assembly (supplied); model 6811A coaxial cable assembly (sold separately)

Physical

Housing Material

 N/A Titanium

Sensing Element

 N/A Quartz, Shear

Weight

 N/A 0.03 oz

Environmental

Temperature Range

 N/A -60 to +300 ºF-51 to +149 ºC

Thermal Coefficient of Sensitivity

 N/A 0.03 %/°F0.06 %/°C

Environmental Seal

 N/A Epoxy

Applications

Applications

 N/A Environmental Stress Screening (ESS) General purpose triaxial vibration measurements Halt/Hass Modal and structural analysis Product Response Testing

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Performance

Sensitivity

 N/A 0.2 mV/m/s²

Features

Features

 N/A +300 ºF (+149 ºC) Operation 0.8 grams 10 mV/g sensitivity IEPE Triaxial Ultra-Miniature
