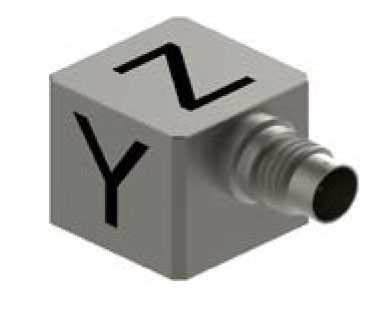

  • Case Isolated
  • Hermetically Sealed
  • Stud Mounted
Unit of Measure

Specifications

Brands

 N/A Dytran

Frequency Response

 N/A 0.6 to 5,000 Hz

Type

 N/A Integrated Electronic Piezoelectric (IEPE)

Number of Axis

 N/A 3

Physical

Housing Material

 N/A Titanium

Maximum Weight

 N/A 0.49 oz14 g

Mounting Stud Mount

 N/A 10-32 United Fine (UNF-2A)

Connector Size

 N/A 1/4-28

Note for Connector Type

 N/A Glass to Metal seal connector. Mates with Dytran cable Model 6811AXX (XX=length in feet)

Connector Material

 N/A Titanium

Connector Pins

 N/A 4

Housing Isolation

 N/A Case Isolated

Sensing Element Material

 N/A Ceramic

Sensing Element Mode

 N/A Shear

Environmental

Temperature Range

 N/A -60 to 225 ºF-51 to 107 ºC

Maximum Peak Vibration (±)

 N/A 120 g1,177 m/s²

Environmental Seal

 N/A Hermetic

Maximum Peak Shock (±)

 N/A 200 g1,962 m/s²

Magnetic Sensitivity at 100 Gauss

 N/A 0.00007 g0.0007 m/s²

Base Strain Sensitivity

 N/A 0.05 g/µε0.4905 m/s²/µε

Performance

Sensitivity

 N/A 50 mV/g5.10 mV/m/s²

Note for Sensitivity

 N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2.

Frequency Response Tolerance

 N/A ±5 %

Resonant Frequency

 N/A >30 kHz

Full Scale (F.S.) Linearity (±)

 N/A 1 %

Note for Full Scale (F.S.) Linearity (±)

 N/A Measured using zero-based straight line method, % of F.S. or any lesser range.

Maximum Transverse Sensitivity

 N/A 6 %

Peak Acceleration Range (±)

 N/A 100 g981 m/s²

Root-Mean-Square (RMS) Noise Floor

 N/A 0.0014 g0.01 m/s²

Root-Mean-Square (RMS) Spectral Noise at 1 Hertz (Hz) Frequency

 N/A 400 µg3,924 µm/s²

Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency

 N/A 280 µg2746.8 µm/s²

Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency

 N/A 180 µg1765.8 µm/s²

Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency

 N/A 100 µg981 µm/s²

Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency

 N/A 40 µg392.4 µm/s²

Electrical

Power Supply Current

 N/A 2 to 20 mA

Note for Power Supply Current

 N/A Do not apply power to this device without current limiting, 20 mA MAX. To do so will destroy the integral IC amplifier.

Compliance Voltage Range

 N/A +18 to +30 V

Direct Current (DC) Operating Bias Voltage

 N/A +11 to +13 V

Discharge Time Constant

 N/A 0.7 to 1.7 sec

Typical Output Impedance

 N/A 100 O

Minimum Electrical Isolation

 N/A 10 GO

Supplied Accessories

Supplied Accessories

 N/A
  1. Model 6200 Mounting Stud Supplied, Qty: 1
  2. Accredited Calibration Certificate (ISO 17025)

Note

Note

 N/A In the interest of constant product improvement, we reserve the right to change specifications without notice. It is the customer's responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary overtime. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts.

Units on the line drawing are in inches, units in brackets are in millimeters.
