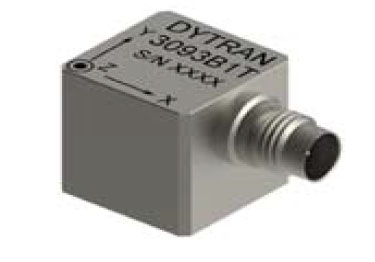

Brands |
N/A Dytran |
Frequency Response |
N/A 2 to 5,000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 3 |
Housing Material |
N/A Titanium Alloy |

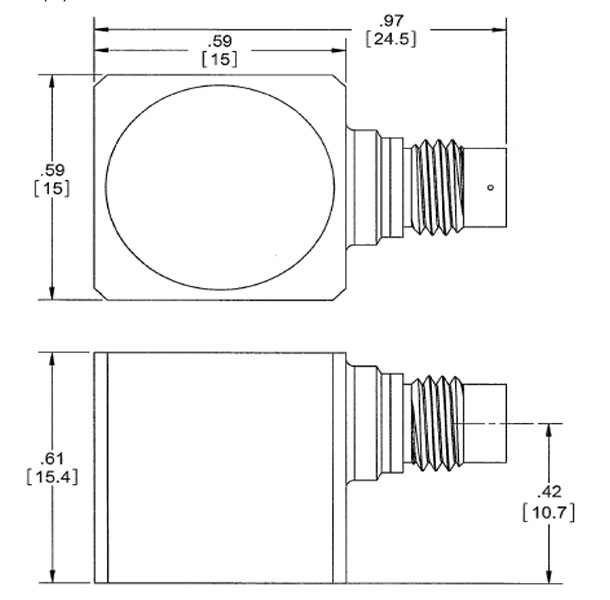

Mounting Provision |
N/A 10-32 Stud |
Note for Connector Type |
N/A Glass to Metal seal connector. Mates with Dytran cable Model 6430AXX (XX=length in feet) |
Connector Material |
N/A Titanium Alloy |
Connector Pins |
N/A 4 |
Housing Isolation |
N/A Case Isolated |
Sensing Element Material |
N/A Ceramic |
Sensing Element Mode |
N/A Shear |
Weight |
N/A 0.4 oz10 g |

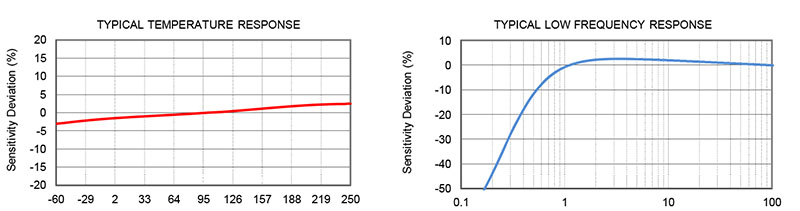

Temperature Range |
N/A -60 to 225 ºF-51 to 107 ºC |
Maximum Peak Vibration (±) |
N/A 3000 g29430 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 7,000 g68,670 m/s² |
Transducer Electronic Data Sheet (TEDS) Operating Temperature |
N/A -40 to +185 ºF-40 to +85 ºC |
Sensitivity |
N/A 100 mV/g10.2 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Frequency Response Tolerance |
N/A ±10 % |
Resonant Frequency |
N/A >30 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Linearity is % of specified full scale (or any less full-scale range), zero-based best fit straight line method. |
Maximum Transverse Sensitivity |
N/A 6 % |
Peak Acceleration Range (±) |
N/A 50 g491 m/s² |
Root-Mean-Square (RMS) Noise Floor |
N/A 0.0007 g0.007 m/s² |
Power Supply Current |
N/A 2 to 20 mA |
Note for Power Supply Current |
N/A Do not apply power to this device without current limiting, 20 mA MAX. To do so will destroy the integral IC amplifier. |
Compliance Voltage Range |
N/A +18 to +20 V |
Direct Current (DC) Operating Bias Voltage |
N/A +11 to +13 V |
Discharge Time Constant |
N/A 0.5 to 1.5 sec |
Transducer Electronic Data Sheet (TEDS) Feature |
N/A Institute of Electrical and Electronics Engineers (IEEE) 1451.4 |
Typical Output Impedance |
N/A 100 O |
Minimum Electrical Isolation |
N/A 10 GO |
