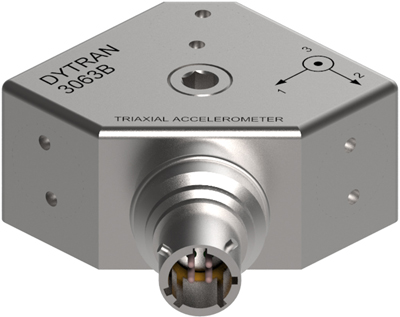

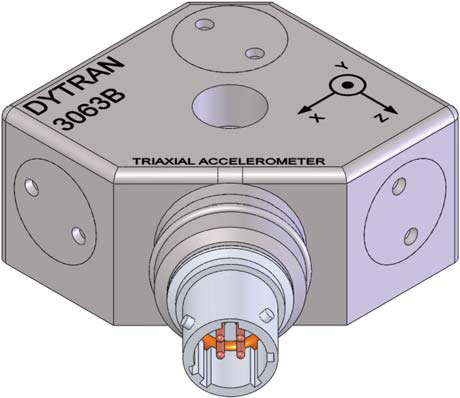

The Dytran model 3063B is a highly rugged, triaxial IEPE accelerometer with a sensitivity of 100 mV/g, built-in long discharge time constant and excellent low-frequency response down to 0.5 Hz.

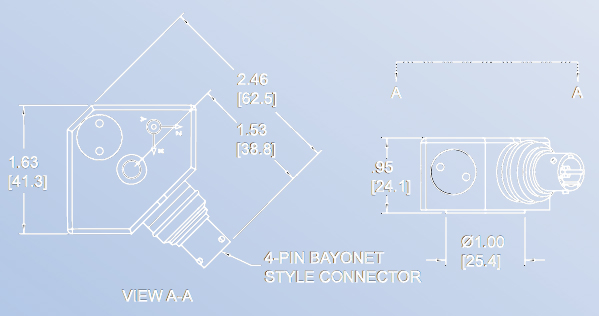

Designed of the model 3063B incorporates ceramic shear crystal sensing elements, packaged in a stainless steel housing, with a 4-pin Bayonet-style connector. This sensor is also directly compatible with the Dytran model 6529 Immersion Proof™ sealing boot (sold separately). When used together, the sensor remains fully functional in an IP65 environment. The sensor is also hermetically sealed for reliable operation in high-humidity and dirty environments and case isolated to avoid EMI/ground loop interference.
