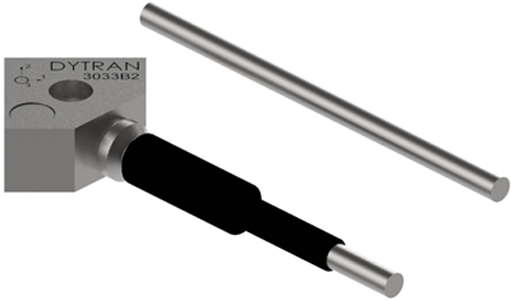

The Dytran model 3033B2 is a low-profile triaxial IEPE accelerometer with a height of 0.31 inches and a total weight of 11 grams. Featuring quartz shear sensing elements packaged in a rugged stainless steel housing for improved frequency response, the model 3033B2 is ideal for low-mass vibration monitoring.

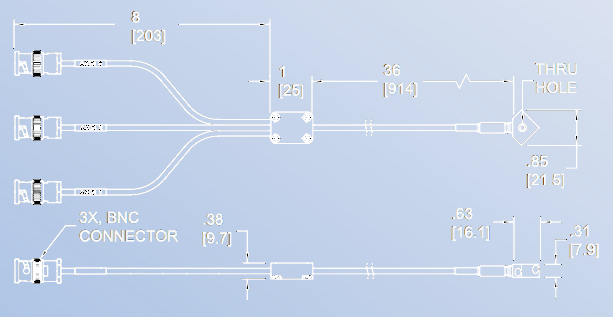

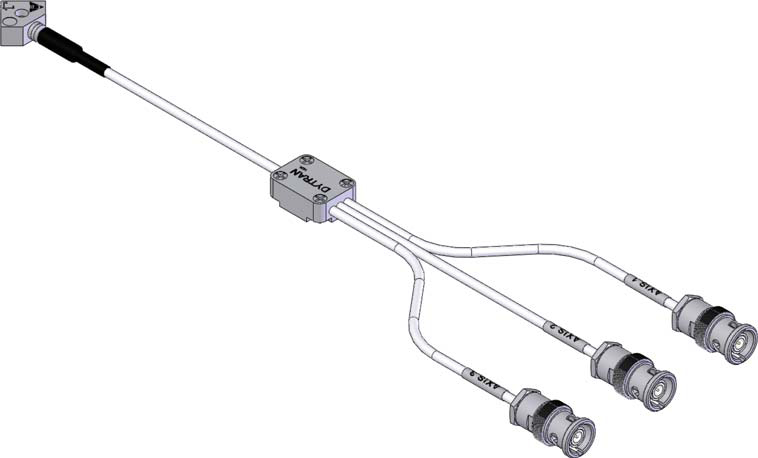

The model 3033B2 utilizes a three-foot integral cable and thru-hole mounting capabilities. This centralized screw mounting configuration allows for the sensor to be turned 360° prior to securing for ease of installation. If desired, the accelerometer may also be adhesively mounted to the test article.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A Triaxial

Height

 N/A 0.31 in

Measuring Acceleration Range

 N/A 500 g4903 m/s²

Frequency Response

 N/A 1 to 8000 Hz

Frequency Response Gain

 N/A -10 dB+10 dB

Spectral Noise

 N/A C

Electrical Isolation

 N/A No

Maximum Shock

 N/A 1000 g9807 m/s²

Recommended Mounting Accessories

 N/A One (1) model 6545A1 (4-40) mounting screw (supplied)

Recommended Cabling Accessories

 N/A Integral 3-foot coaxial cable assembly (supplied)

Physical

Housing Material

 N/A Stainless Steel

Sensing Element

 N/A Quartz, Shear

Weight

 N/A 0.39 oz

Environmental

Temperature Range

 N/A -60 to 250 ºF-51 to 121 ºC

Thermal Coefficient of Sensitivity

 N/A 0.03 %/°F0.06 %/°C

Environmental Seal

 N/A Epoxy

Applications

Applications

 N/A Environmental Stress Screening (ESS) General purpose triaxial vibration measurements Product Response Testing

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Performance

Sensitivity

 N/A 1 mV/m/s²

Features

Features

 N/A 360º Cable Orientation IEPE Integral Cable Lightweight Triaxial
