Brands |
N/A Dytran |

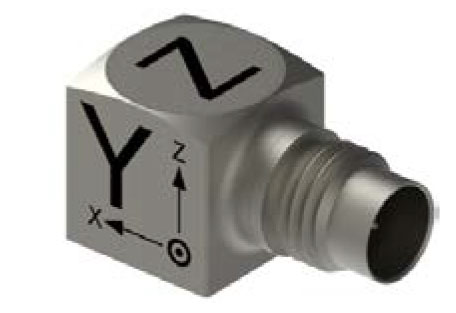

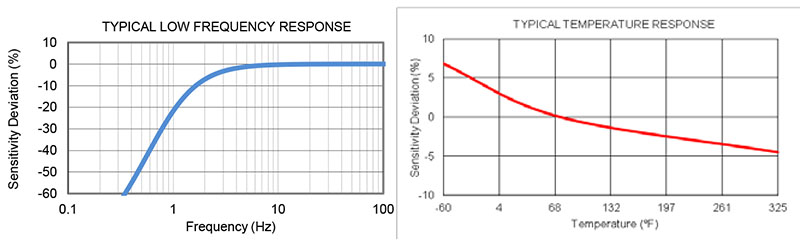

Frequency Response |
N/A 2 to 10,000 Hz2.5 to 4,000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 3 |
Housing Material |
N/A Titanium |
Maximum Weight |
N/A 0.105 oz3.0 g |
Mounting |
N/A Adhesive |
Connector Type |
N/A 4-Pin |
Note for Connector Type |
N/A Connector mates with Dytran's cable assy. model 6811AXX or 6824AXX. (xx = length in feet) |
Connector Material |
N/A Titanium |
Temperature Range |
N/A -60 to 325 ºF-51 to 162 ºC |
Maximum Peak Vibration (±) |
N/A 1200 g11772 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 2000 g19620 m/s² |
Magnetic Sensitivity at 100 Gauss |
N/A 0.00005 g4.905 m/s²/T |
Base Strain Sensitivity at 250 Micro Epsilon (µe) |
N/A 0.024 g/µε0.24 g/µε |
Sensitivity |
N/A 5 mV/g0.51 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Frequency Response Tolerance |
N/A +15 %±5 % |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measured using zero-based best straight-line method, % of F.S. or any lesser range. |
Maximum Transverse Sensitivity |
N/A 5 % |
Root-Mean-Square (RMS) Equivalent Electrical Noise Floor |
N/A 0.014 g0.14 m/s² |
Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency |
N/A 488 µg rms/√ Hz4,787 µms²/√ Hz |
Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency |
N/A 122 µg rms/√ Hz1,197 µms²/√ Hz |
Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency |
N/A 46 µg rms/√ Hz451 µms²/√ Hz |
Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency |
N/A 17.4 µg rms/√ Hz171 µms²/√ Hz |
Full Scale (F.S.) Range (Each Axis) (±) |
N/A 1000 g49050 m/s² |
Element Natural Frequency |
N/A 25 kHz |
Root-Mean-Square (RMS) Spectral Noise at 1.25 Hertz (Hz) Frequency |
N/A 488 µg rms/√ Hz4,787 µms²/√ Hz |
Power Supply Current |
N/A 2 to 20 mA |
Note for Power Supply Current |
N/A Power only with Dytran IEPE power unit or other Dytran-compatible constant current type power unit. If power is applied without current limiting protection, the internal amplifier will be destroyed. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A 7 to 12 V |
Discharge Time Constant |
N/A 0.2 to 2.0 sec |
Typical Output Impedance |
N/A 100 O |
Note for Signal Polarity |
N/A Positive for motion in direction of arrows on housing. |
Ground Isolation |
N/A Case grounded |
