Brands |
N/A Dytran |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 3 |
Housing Material |
N/A Titanium Alloy |

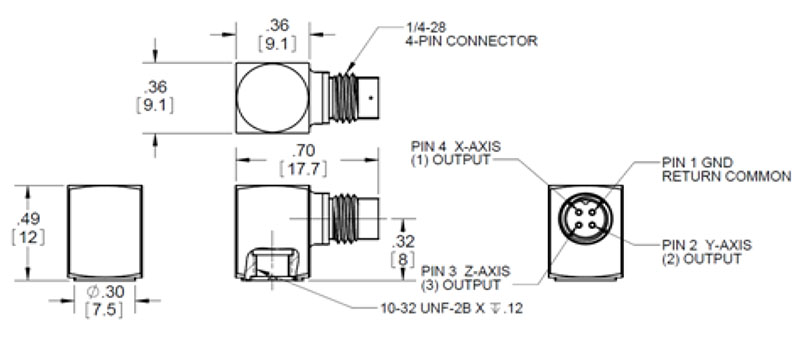

Connector Type |
N/A 4-Pin |
Connector Material |
N/A Titanium Alloy |
Tapped Hole Mounting Provision |
N/A 10 to 32 |
Sensing Element Material |
N/A Quartz |
Element Style Type |
N/A Shear |
Weight |
N/A 0.14 oz4.0 g |
Temperature Range |
N/A -60 to +320 ºF-51 to +160 ºC |
Maximum Peak Vibration (±) |
N/A 1200 g11,768 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 5,000 g49,050 m/s² |
Sensitivity |
N/A 5 mV/g0.51 mV/m/s² |
Resonant Frequency |
N/A 30 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measured using zero-based best straight-line method, % of F.S. or any lesser range. |
Root-Mean-Square (RMS) Broadband Resolution |
N/A 0.015 g0.147 m/s² |
Maximum Transverse Sensitivity |
N/A 6 % |
Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency |
N/A 0.002 g rms/√ Hz0.0196 ms²/√ Hz |
Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency |
N/A 0.0004 g rms/√ Hz0.0039 ms²/√ Hz |
Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency |
N/A 0.0001 g rms/√ Hz0.00098 ms²/√ Hz |
Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency |
N/A 0.00008 g rms/√ Hz0.00078 ms²/√ Hz |
Full Scale (F.S.) Range (Each Axis) (±) |
N/A 1000 g9810 m/s² |

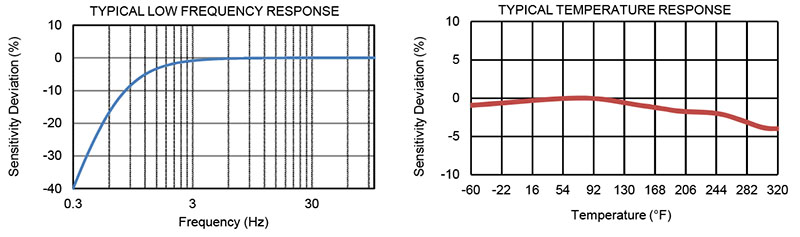

-5/+15 Percent (%) Frequency Response for 1 and 2 Axis |
N/A 1.5 to 4,000 Hz |
-5/+15 Percent (%) Frequency Response for 3 Axis |
N/A 1.5 to 10,000 Hz |
Root-Mean-Square (RMS) Spectral Noise at 1.25 Hertz (Hz) Frequency |
N/A 0.006 g rms/√ Hz0.059 ms²/√ Hz |
Power Supply Current |
N/A 2 to 20 mA |
Note for Power Supply Current |
N/A Do not apply power to this system without current limiting, 20 mA MAX. To do so will destroy the IC charge amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A 7 to 11 V |
Discharge Time Constant |
N/A 0.3 to 1.5 sec |
Typical Output Impedance |
N/A 100 O |
Minimum Electrical Isolation |
N/A Case Grounded |
Note for Signal Polarity |
N/A Positive for motion in direction of arrows on housing. |
