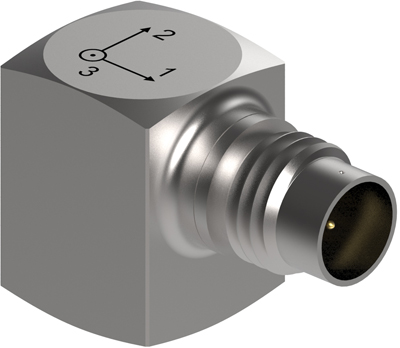

The Dytran 3023A series is a family of miniature triaxial IEPE accelerometers, available in four models, each weighing just 4 grams.

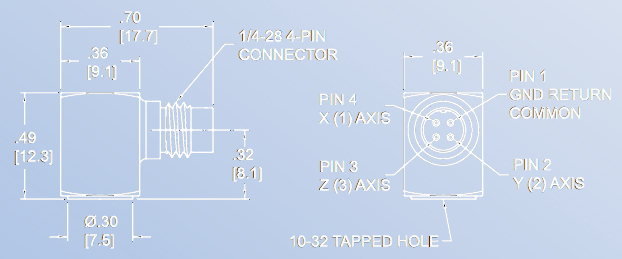

Available with choice of 1, 5 or 10 mV/g sensitivity, units feature a 4-pin radial connector and 10-32 stud mounting. Design of the Dytran 3023A series incorporates three quartz shear sensing elements, packaged in a laser welded titanium housing. Units are hermetically sealed for reliable operation in high-humidity and dirty environments. In addition, the Dytran model 3023A2H is uniquely capable of reliable operation in temperatures up to +320°F (+160°C).

Series models 3023A2, 3023A2H, 3023A6 and 3023A9 are all part of the 3023A series, which feature the same basic construction, varying in terms of their sensitivity, mounting configuration and operating temperature range.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A Triaxial

Measuring Acceleration Range

 N/A 1000 g9807 m/s²

Frequency Response

 N/A 1.5 to 5,000 Hz

Frequency Response Gain

 N/A -5 dB+15 dB

Spectral Noise

 N/A B

Electrical Isolation

 N/A No

Maximum Shock

 N/A 5000 g49033 m/s²

Recommended Mounting Accessories

 N/A One (1) model 6200 (10-32 to 10-32) mounting stud (supplied)

Recommended Cabling Accessories

 N/A Model 6811A coaxial cable assembly (sold separately)

Physical

Housing Material

 N/A Titanium

Sensing Element

 N/A Quartz, Shear

Weight

 N/A 0.14 oz

Environmental

Temperature Range

 N/A -60 to 250 ºF-51 to 121 ºC

Thermal Coefficient of Sensitivity

 N/A 0.03 %/°F0.06 %/°C

Environmental Seal

 N/A Hermetic

Applications

Applications

 N/A Environmental Stress Screening (ESS) General purpose triaxial vibration measurements Halt/Hass

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Performance

Sensitivity

 N/A 0.5 mV/m/s²

Features

Features

 N/A 10-32 Stud Mount IEPE Lightweight Optional high-temperature Version Triaxial
