  • High Temperature
  • Hermetically Sealed
  • Miniature Size
Unit of Measure

Specifications

Brands

 N/A Dytran

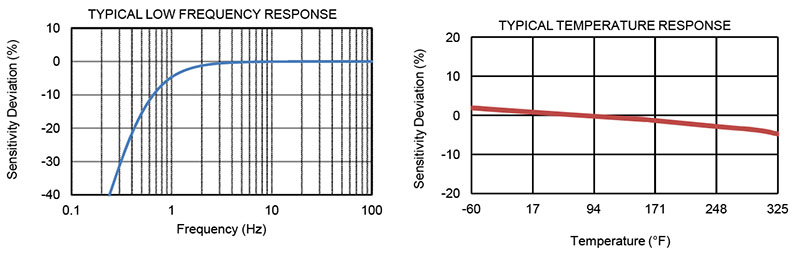

Frequency Response

 N/A 1.5 to 10000 Hz

Type

 N/A Integrated Electronic Piezoelectric (IEPE)

Number of Axis

 N/A 3

Physical

Housing Material

 N/A Titanium Alloy

Mounting

 N/A Adhesive Mount

Connector Type

 N/A 4-Pin

Note for Connector Type

 N/A Connector mates with Dytran's cable assy. Model 6967AXX. (xx = length in feet)

Connector Material

 N/A Titanium Alloy

Weight

 N/A 0.11 oz3.0 g

Environmental

Temperature Range

 N/A -60 to 325 ºF-51 to 162 ºC

Maximum Peak Vibration (±)

 N/A 6000 g58860 m/s²

Environmental Seal

 N/A Hermetic

Maximum Peak Shock (±)

 N/A 7,000 g68,670 m/s²

Performance

Sensitivity

 N/A 1.0 mV/g0.10 mV/m/s²

Note for Sensitivity

 N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2.

Frequency Response Tolerance

 N/A +15 %-5 %

Full Scale (F.S.) Linearity (±)

 N/A 1 %

Note for Full Scale (F.S.) Linearity (±)

 N/A Measured using zero-based best straight-line method, percentage of F.S. or any lesser range.

Root-Mean-Square (RMS) Broadband Resolution

 N/A 0.007 g0.07 m/s²

Maximum Transverse Sensitivity

 N/A 6 %

Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency

 N/A 0.01 g rms/√ Hz0.10 ms²/√ Hz

Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency

 N/A 0.002 g rms/√ Hz0.02 ms²/√ Hz

Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency

 N/A 0.0005 g rms/√ Hz0.00 ms²/√ Hz

Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency

 N/A 0.0004 g rms/√ Hz0.00 ms²/√ Hz

Full Scale (F.S.) Range (Each Axis) (±)

 N/A 5000 g49050 m/s²

Element Natural Frequency

 N/A >30 kHz

Note for Root-Mean-Square (RMS) Broadband Resolution

 N/A Typical. Not to exceed 0.010 Grms [0.10 m/s2].

Root-Mean-Square (RMS) Spectral Noise at 1.25 Hertz (Hz) Frequency

 N/A 0.03 g rms/√ Hz0.29 ms²/√ Hz

Electrical

Power Supply Current

 N/A 2 to 20 mA

Note for Power Supply Current

 N/A Do not apply power to this system without current limiting, 20 mA MAX. To do so will destroy the IC charge amplifier.

Compliance Voltage Range

 N/A +18 to +30 V

Direct Current (DC) Operating Bias Voltage

 N/A 7 to 11 V

Typical Output Impedance

 N/A 100 O

Nominal Discharge Time Constant

 N/A 0.3 to 1.0

Note for Signal Polarity

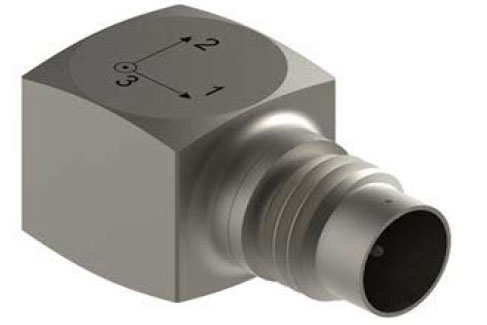

 N/A Arrows on housing indicate direction of acceleration for positive output.

Ground Isolation

 N/A Case grounded

Supplied Accessories

Supplied Accessories

 N/A Accredited calibration certificate (ISO 17025)

Note

Note

 N/A In the interest of constant product improvement, we reserve the right to change the specification without notice.

Units on the line drawing are in inches, units in brackets are in millimeters.
