  • High Temperature
  • Hermetically Sealed
  • Miniature Size
Unit of Measure

Specifications

Brands

 N/A Dytran

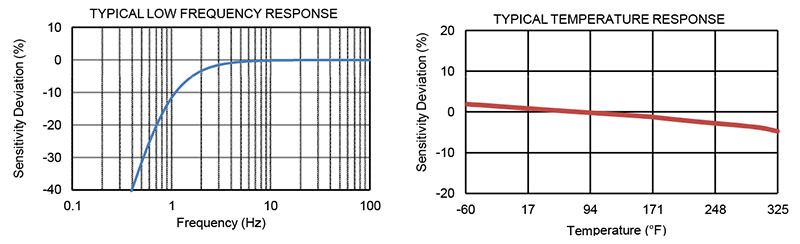

Frequency Response

 N/A 1.5 to 10000 Hz

Type

 N/A Integrated Electronic Piezoelectric (IEPE)

Number of Axis

 N/A 3

Physical

Housing Material

 N/A Titanium Alloy

Maximum Weight

 N/A 0.11 oz3.0 g

Mounting

 N/A Adhesive Mount

Connector Type

 N/A 4-Pin

Note for Connector Type

 N/A Connector mates with Dytran's cable assy. Model 6967AXX. (xx = length in feet)

Connector Material

 N/A Titanium Alloy

Sensing Element Material

 N/A Quartz

Element Style Type

 N/A Shear

Environmental

Temperature Range

 N/A -60 to 325 ºF-51 to 162 ºC

Maximum Peak Vibration (±)

 N/A 1200 g11,768 m/s²

Environmental Seal

 N/A Hermetic

Maximum Peak Shock (±)

 N/A 5,000 g49,050 m/s²

Performance

Sensitivity

 N/A 5 mV/g0.51 mV/m/s²

Note for Sensitivity

 N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2.

Frequency Response Tolerance

 N/A +15 %-5 %

Resonant Frequency

 N/A >40 kHz

Full Scale (F.S.) Linearity (±)

 N/A 1 %

Note for Full Scale (F.S.) Linearity (±)

 N/A Measured using zero-based best straight-line method, percentage of F.S. or any lesser range.

Root-Mean-Square (RMS) Broadband Resolution

 N/A 0.015 g0.147 m/s²

Maximum Transverse Sensitivity

 N/A 6 %

Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency

 N/A 0.002 g rms/√ Hz0.0196 ms²/√ Hz

Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency

 N/A 0.0004 g rms/√ Hz0.0039 ms²/√ Hz

Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency

 N/A 0.0001 g rms/√ Hz0.00098 ms²/√ Hz

Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency

 N/A 0.00008 g rms/√ Hz0.00078 ms²/√ Hz

Full Scale (F.S.) Range (Each Axis) (±)

 N/A 1000 g9810 m/s²

Root-Mean-Square (RMS) Spectral Noise at 1.25 Hertz (Hz) Frequency

 N/A 0.006 g rms/√ Hz0.059 ms²/√ Hz

Electrical

Power Supply Current

 N/A 2 to 20 mA

Note for Power Supply Current

 N/A Do not apply power to this system without current limiting, 20 mA MAX. To do so will destroy the IC charge amplifier.

Compliance Voltage Range

 N/A +18 to +30 V

Direct Current (DC) Operating Bias Voltage

 N/A 7 to 11 V

Discharge Time Constant

 N/A 0.3 to 1.5 sec

Typical Output Impedance

 N/A 100 O

Note for Signal Polarity

 N/A Arrows on housing indicate direction of acceleration for positive output.

Ground Isolation

 N/A Case grounded

Supplied Accessories

Supplied Accessories

 N/A Accredited calibration certificate (ISO 17025)

Note

Note

 N/A In the interest of constant product improvement, we reserve the right to change the specification without notice.

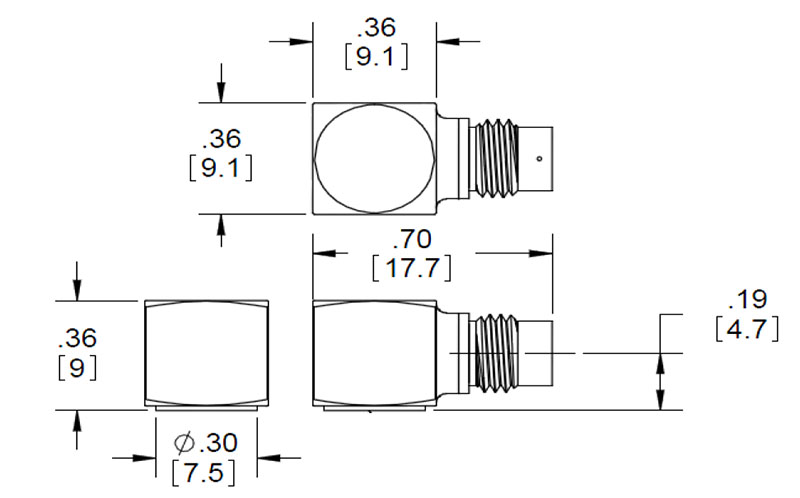

Units on the line drawing are in inches, units in brackets are in millimeters.
