Brands |
N/A Dytran |

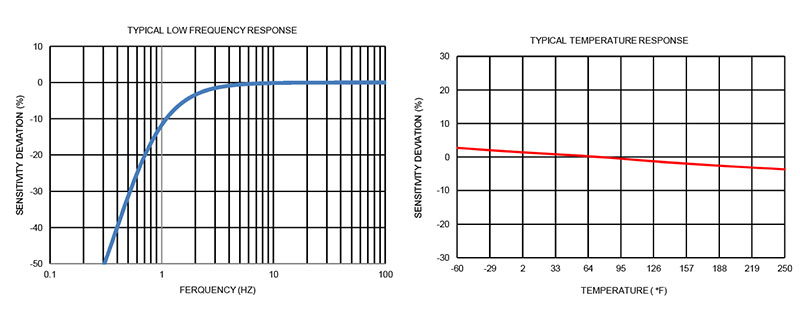

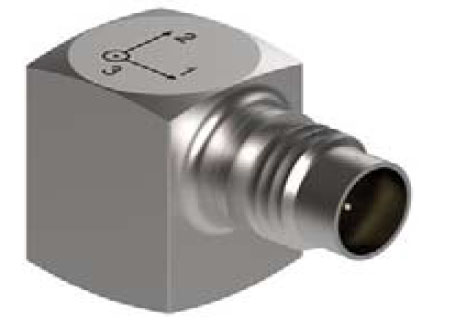

Frequency Response |
N/A 1.5 to 4,000 Hz1.5 to 10000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Number of Axis |
N/A 3 |
Housing Material |
N/A Titanium Alloy |
Maximum Weight |
N/A 0.22 oz6.2 g |

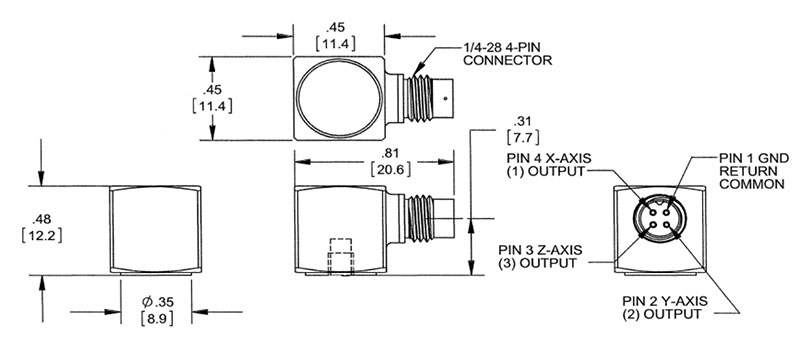

Connector Type |
N/A 4-Pin |
Connector Material |
N/A Titanium Alloy |
Tapped Hole Mounting Provision |
N/A 5 to 40 |
Sensing Element Material |
N/A Quartz |
Element Style Type |
N/A Shear |
Temperature Range |
N/A -60 to 250 ºF-51 to 121 ºC |
Maximum Peak Vibration (±) |
N/A 600 g5,884 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 5,000 g49,033 m/s² |
Transducer Electronic Data Sheet (TEDS) Operating Temperature |
N/A -40 to +185 ºF-40 to +85 ºC |
Base Strain Sensitivity at 250 Micro Epsilon (µe) |
N/A 0.006 g/µε0.06 g/µε |
Sensitivity |
N/A 10 mV/g1.0 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Frequency Response Tolerance |
N/A +15 %±5 % |
Resonant Frequency |
N/A >40 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measure using zero-based straight line method, % of F.S. or any lesser range. |
Root-Mean-Square (RMS) Broadband Resolution |
N/A 0.007 g0.069 m/s² |
Maximum Transverse Sensitivity |
N/A 5 % |
Full Scale (F.S.) Range for ± 5 Volts (V) Voltage Output (±) |
N/A 500 g4,903 m/s² |
Root-Mean-Square (RMS) Spectral Noise at 10 Hertz (Hz) Frequency |
N/A 0.001 g rms/√ Hz0.0098 ms²/√ Hz |
Root-Mean-Square (RMS) Spectral Noise at 100 Hertz (Hz) Frequency |
N/A 0.0002 g rms/√ Hz0.00196 ms²/√ Hz |
Root-Mean-Square (RMS) Spectral Noise at 1000 Hertz (Hz) Frequency |
N/A 0.00005 g rms/√ Hz0.00049 ms²/√ Hz |
Root-Mean-Square (RMS) Spectral Noise at 10000 Hertz (Hz) Frequency |
N/A 0.00004 g rms/√ Hz0.00039 ms²/√ Hz |
Note for Root-Mean-Square (RMS) Broadband Resolution |
N/A Typical. Not to exceed 0.010 Grms [0.10 m/s2]. |
Root-Mean-Square (RMS) Spectral Noise at 1.25 Hertz (Hz) Frequency |
N/A 0.003 g rms/√ Hz0.029 ms²/√ Hz |
Power Supply Current |
N/A 2 to 20 mA |
Note for Power Supply Current |
N/A Do not apply power to this system without current limiting, 20 mA MAX. To do so will destroy the IC charge amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A 7 to 11 V |
Discharge Time Constant |
N/A 0.3 to 1.5 sec |
Transducer Electronic Data Sheet (TEDS) Feature |
N/A Institute of Electrical and Electronics Engineers (IEEE) 1451.4 |
Typical Output Impedance |
N/A 100 O |
Minimum Electrical Isolation |
N/A Case Grounded |
