Housing Material |
N/A Titanium Alloy |
Mounting |
N/A Adhesive Mount |
Connector Type |
N/A 4 Wire Integral Cable |
Connector Material |
N/A Titanium Alloy |
Sensing Element Material |
N/A Quartz |
Weight |
N/A 0.21 oz6.0 g |
Temperature Range |
N/A -40 to 347 ºF-40 to 175 ºC |
Maximum Peak Vibration (±) |
N/A 600 g5886 m/s² |
Environmental Seal |
N/A Hermetic |
Maximum Peak Shock (±) |
N/A 5,000 g49,050 m/s² |
Base Strain Sensitivity at 250 Micro Epsilon (µe) |
N/A <0.1 g/µε<1.0 g/µε |
Sensitivity |
N/A 2.0 mV/g0.20 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Resonant Frequency |
N/A >30 kHz |
Full Scale (F.S.) Linearity (±) |
N/A 1 % |
Note for Full Scale (F.S.) Linearity (±) |
N/A Measured using zero-based straight line method, % of F.S. or any lesser range. |
Maximum Transverse Sensitivity |
N/A 5 % |

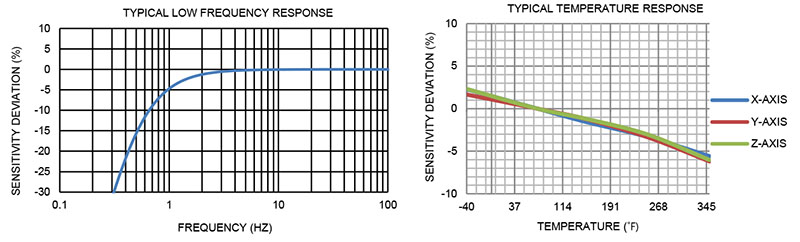

Frequency Response at ±3 Decibel (dB) Bandwidth |
N/A 2 to 5,000 Hz |
Root-Mean-Square (RMS) Equivalent Electrical Noise Floor |
N/A 0.020 g0.20 m/s² |
Full Scale (F.S.) Range (Each Axis) (±) |
N/A 500 g4905 m/s² |
Full Scale (F.S.) Voltage Output (±) |
N/A 1 V |
Direct Current (DC) Operating Bias Voltage |
N/A +1.7 to +3.4 V |
Discharge Time Constant |
N/A 0.25 to 0.75 sec |
Typical Output Impedance |
N/A 100 O |
Note for Environmental Seal |
N/A Connection wires from connector are epoxy sealed. |
Supply Current (Each Axis) |
N/A 4.0 mA |
Note for Supply Current (Each Axis) |
N/A Do not apply power to this system without current limiting, 4 mA MAX. To do so will destroy the IC charge amplifier. |
Nominal Compliance Voltage (Each Axis) |
N/A +4.5 V |
Ground Isolation |
N/A None, Case is Connected to Sig Return. |
