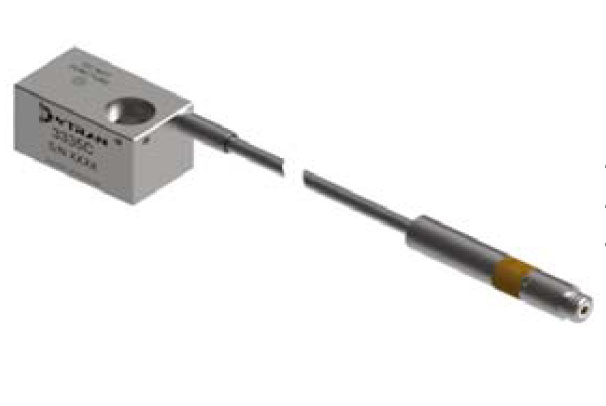

  • Hermetically Sealed
  • High Temperature (1200ºf [649ºc]) Operation
  • Case Ground Isolated
Unit of Measure

Specifications

Brands

 N/A Dytran

Frequency Response

 N/A Up to 2,500 HzUp to 3,500 HzUp to 5000 Hz

Type

 N/A Charge Mode

Number of Axis

 N/A 1

Physical

Housing Material

 N/A Alloy 600

Maximum Weight (Less Cable)

 N/A 1.23 oz35 g

Mounting Provision

 N/A 10-32 Screw

Element Style Material

 N/A Single Crystal

Connector Type

 N/A 10-32

Connector Material

 N/A Stainless Steel

Element Style Type

 N/A Planar Shear

Environmental

Temperature Range

 N/A -60 to +1200 ºF-51 to +649 ºC

Maximum Peak Vibration (±)

 N/A 1000 g9810 m/s²

Environmental Seal

 N/A Hermetic

Maximum Peak Shock (±)

 N/A 2000 g19620 m/s²

Performance

Sensitivity

 N/A 1 to 2 pC/g0.1 to 0.2 pC/m/s²

Note for Sensitivity

 N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2.

Frequency Response Tolerance

 N/A ±10 %±30 %±5 %

Resonant Frequency

 N/A >20 kHz

Full Scale (F.S.) Linearity (±)

 N/A 1 %

Note for Full Scale (F.S.) Linearity (±)

 N/A Measured using zero-based straight line method, % of F.S. or any lesser range.

Maximum Transverse Sensitivity

 N/A 5 %

Strain Sensitivity

 N/A 0.002 g/µε0.02 m/s²/µε

Note for ±10 Percent (%) Frequency Response

 N/A Low frequency response and phase response is function of charge amplifier. See graph below for example.

Note for ±30 Percent (%) Frequency Response

 N/A Low frequency response and phase response is function of charge amplifier. See graph below for example.

Insulation Resistance at 75 and 24 Degree Fahrenheit Temperature

 N/A >1.0E8 O

Insulation Resistance at 1200 and 649 Degree Fahrenheit Temperature

 N/A >5.0E4 O

Electrical

Output Signal Polarity

 N/A Negative

Ground Isolation

 N/A >1.0E8 O

Capacitance

 N/A 340 pF

Note

Note

 N/A In the interest of constant product improvement, we reserve the right to change specifications without notice.

U.S. Patent number US 8,375,793 B2 applies to this unit.

Units on the line drawing are in inches, units in brackets are in millimeters. Refer to 127-3335C for more information.

Supplied Accessories

Supplied Accessories

 N/A
  1. Accredited calibration certificate (ISO 17025)
  2. Mounting screw, model 6971 (SHCS, 10-32 X .75), Qty 1. Mounting screw model 69074 (Hex, 10-32 x 0.75) optional.
