Brands |
N/A Dytran |
Frequency Response |
N/A Up to 7,000 HzUp to 10,000 Hz |
Maximum Shock |
N/A 5000 g49050 m/s² |
Type |
N/A Charge Mode |

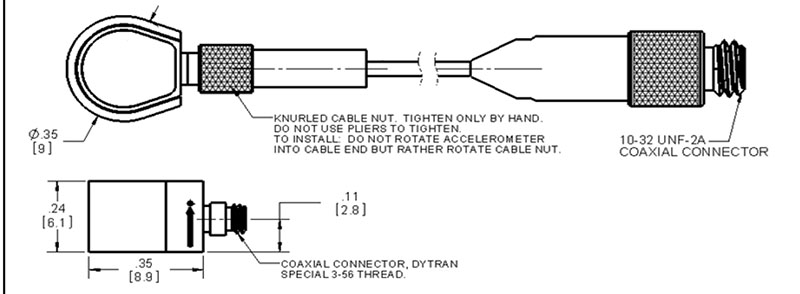

Connector Type |
N/A 3 to 56 United Fine (UNF-2A) |
Note for Connector Type |

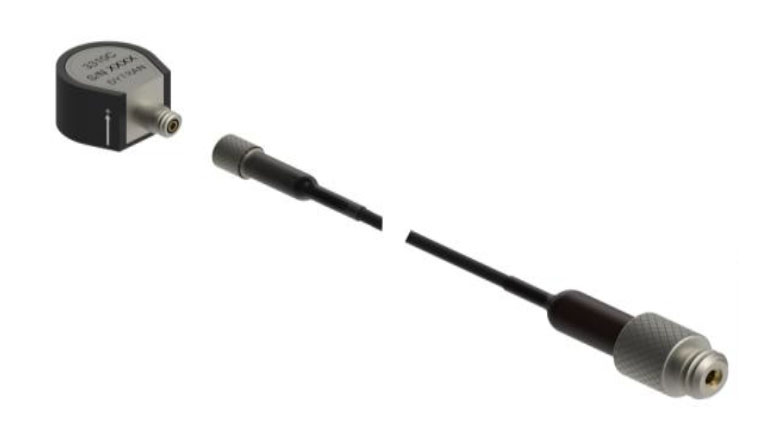

N/A Connector radially mounted. Connector mates only with Dytran cable model 6003XX. (XX is length in feet ) |
Note for Mounting Provision |
N/A Flat mounting surface for adhesive mount. |
Case Material |
N/A Titanium |
Sensing Element Type |
N/A Single Crystal |
Weight |
N/A 0.063 oz1.8 g |
Temperature Range |
N/A -60 to +500 ºF-51 to +260 ºC |
Environmental Seal |
N/A Hermetic |
Base Strain Sensitivity at 250 Micro Epsilon (µe) |
N/A 0.00012 g/µε0.0012 g/µε |
Maximum Root-Mean-Square (RMS) Vibration |
N/A 4000 g39240 m/s² |
Sensitivity |
N/A 1.0 to 1.3 pC/g0.10 to 0.13 pC/m/s² |
Note for Sensitivity |
N/A
Measured at 100 Hz, 1 G RMS per ISA RP37.2. Actual sensitivity is given on a calibration certificate traceable to NIST, supplied with each instrument. |
Frequency Response Tolerance |
N/A ±10 %±5 % |
Maximum Transverse Sensitivity |
N/A 5 % |
Frequency Response at ±3 Decibel (dB) Bandwidth |
N/A Up to 20,000 Hz |
Note for Frequency Response |
N/A Low frequency response is depended upon the discharge time constant of the charge amplifier. |
Full Scale (F.S.) Maximum Amplitude Non Linearity |
N/A 1 % |
Note for Power Supply Current |
N/A Do not apply power to this device without current limiting, 20 mA maximum to do so will destroy the integral IC amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Output Signal Polarity |
N/A Positive |
Power Supply Current Range |
N/A 2 to 20 mA |
Note for Isolation |
N/A Case grounded unit epoxied into anodized aluminum cup. Dielectric withstanding of <1mA at 1000VDC |
