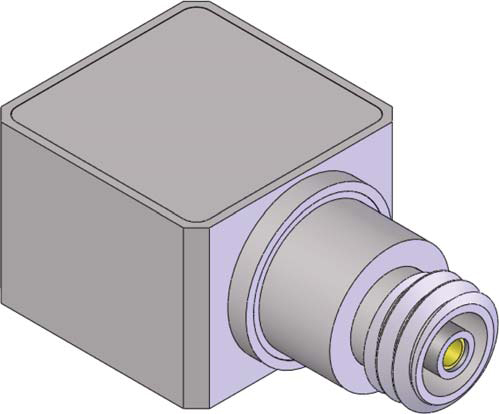

The Dytran 3305A series is a family of lightweight miniature IEPE accelerometers available in three different models, with choice of 10, 100 or 500 mV/g sensitivity. The accelerometers incorporate a ceramic shear sensing element and ultra-low-noise JFET electronics, with materials housed in a highly durable 0.32-inch tall laser welded titanium housing weight just 3.7 grams. The series features an adhesive mount and industry standard 10-32 radial connector.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A Miniature/ESS

Height

 N/A 0.32 in

Measuring Acceleration Range

 N/A 10 g98 m/s²

Frequency Response

 N/A 0.3 to 5,000 Hz

Frequency Response Gain

 N/A -10 dB+10 dB

Spectral Noise

 N/A H

Electrical Isolation

 N/A No

Maximum Shock

 N/A 5000 g49033 m/s²

Recommended Cabling Accessories

 N/A Model 6010A or model 6011A coaxial cable assembly (sold separately)

Physical

Housing Material

 N/A Titanium

Sensing Element

 N/A Ceramic, Shear

Weight

 N/A 0.13 oz

Environmental

Temperature Range

 N/A -60 to +150 ºF-51 to +66 ºC

Thermal Coefficient of Sensitivity

 N/A 0.07 %/°F0.14 %/°C

Environmental Seal

 N/A Hermetic

Performance

Sensitivity

 N/A 51 mV/m/s²

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Applications

Applications

 N/A General Purpose Vibration Measurements Hand-arm and Whole-body Vibration Measurements Modal and structural analysis Noise, Vibration and Harshness (NVH)

Features

Features

 N/A IEPE Low Noise Miniature design Weighs just 3.7 grams
