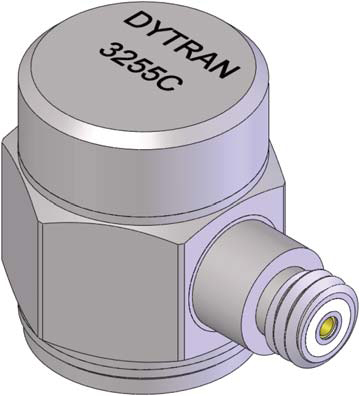

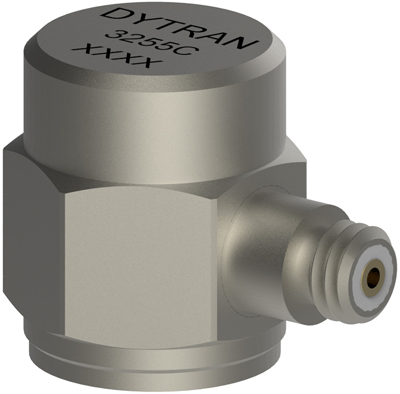

The Dytran model 3255C is a single axis piezoelectric charge mode accelerometer with wide bandwidth, designed to provide cost-effective general purpose vibration monitoring in temperatures up to +375°F (+190°C).

Offered with a sensitivity of 15 pC/g, the model 3255C features a lightweight, robust, hermetically sealed titanium housing with a radial 10-32 connector and stud mount, allowing it to be used across a variety of application environments.
Unit of Measure

Specifications

Brands

 N/A Dytran

Accelerometer Type

 N/A High Temperature

Upper Frequency Response

 N/A 5000 Hz

Upper Frequency Response Gain

 N/A -10 Hz+10 Hz

Electrical Isolation

 N/A No

Maximum Shock

 N/A 3000 g29420 m/s²

Recommended Mounting Accessories

 N/A One (1) model 6200 (10-32 to 10-32) mounting stud (supplied)

Recommended Cabling Accessories

 N/A Model 6013A or model 6019A low-noise coaxial cable assembly (sold separately)

Physical

Housing Material

 N/A Titanium

Sensing Element

 N/A Ceramic, Shear

Weight

 N/A 10 g0.4 oz

Environmental

Temperature Range

 N/A -60 to 375 ºF-51 to 190 ºC

Thermal Coefficient of Sensitivity

 N/A 0.03 %/°F0.06 %/°C

Environmental Seal

 N/A Hermetic

Performance

Sensitivity

 N/A 15 pC/g1.5 pC/m/s²

Quality Management System

Quality Management System

 N/A Dytran Instruments Quality Management System meets the requirements of the following standards:
  • ISO 9001:2008 and AS 9100 Revision C and in accordance with requirements of AS9104A
  • ISO/IEC 17025:2005 and ANSI/NCSL Z540-1-1994
  • ATEX DIRECTIVE 2014/34/EU for electrical and mechanical equipment for use in explosive atmospheres

Applications

Applications

 N/A General Purpose High Temperature Monitoring Modal and structural analysis Vibration control

Features

Features

 N/A +375 ºF (190 ºC) Operation Charge Mode Lightweight Radial Connector Single Axis
