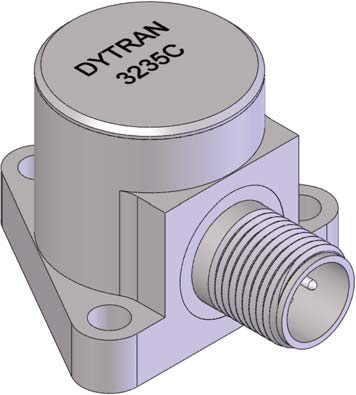

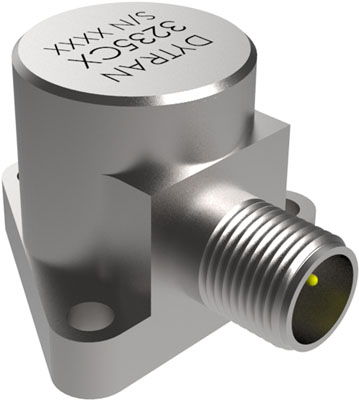

The Dytran 3235C series is a family of high-temperature differential output accelerometers, offering extreme stability over a wide operating temperature range. Offered in three different models with available sensitivities from 50 pC/g to 200 pC/g, the series is unique in that it offers high charge sensitivity while also offering a balanced differential output.

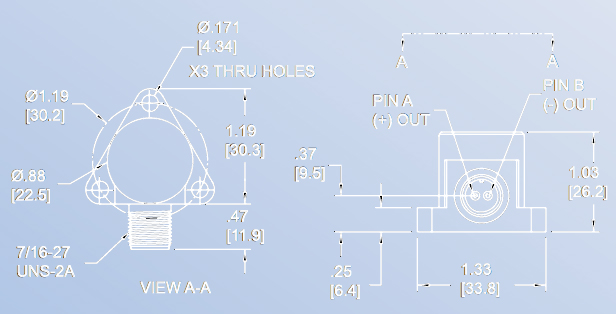

Featuring a transverse mounted glass-to-metal sealed 2-pin connector and an industry standard tri-bolt mount, the Dytran 3235C series can reliably operate in temperatures up to +550°F (+287°C). Accelerometers are packaged in an Inconel housing and hermetically sealed for reliable operation in high-humidity and dirty environments. Units are also case isolated to avoid EMI/ground loop interference.
