Brands |
N/A Dytran |

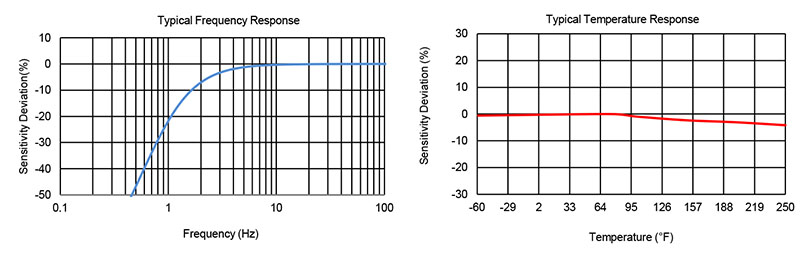

Frequency Response |
N/A 2 to 10,000 Hz |
Type |
N/A Integrated Electronic Piezoelectric (IEPE) |
Maximum Weight |
N/A 0.04 oz1.0 g |

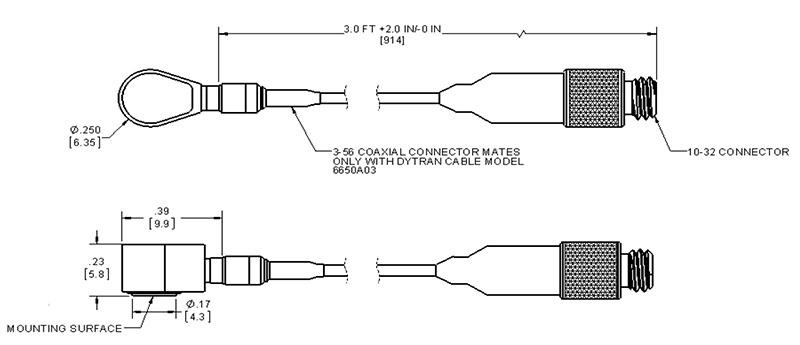

Note for Connector Type |
N/A Mates with Dytran cable 6003A |
Sensing Element Material |
N/A Ceramic |
Sensing Element Mode |
N/A Shear |
Note for Mounting Provision |
N/A Flat mounting surface for adhesive mount. |
Case Material |
N/A Titanium |
Radially Mounted Connector |
N/A 3 to 56 |
Cable Length |
N/A 36 in914 mm |
Temperature Range |
N/A -60 to 250 ºF-51 to 121 ºC |
Maximum Peak Shock |
N/A 5000 g49050 m/s² |
Environmental Seal |
N/A Hermetic |
Base Strain Sensitivity at 250 Micro Epsilon (µe) |
N/A 0.05 g/µε0.49 g/µε |
Maximum Root-Mean-Square (RMS) Vibration |
N/A 400 g3924 m/s² |
Sensitivity |
N/A 100 mV/g10.2 mV/m/s² |
Note for Sensitivity |
N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2. |
Full Scale (F.S.) Range for ± 5 Volts (V) Voltage Output |
N/A ± 50 g± 490.5 m/s² |
Frequency Response Tolerance |
N/A ±10 % |
Maximum Transverse Sensitivity |
N/A 5 % |
Mounted Resonant Frequency |
N/A >60 kHz |
Root-Mean-Square (RMS) Noise Resolution |
N/A 0.0007 g0.01 m/s² |
Full Scale (F.S.) Amplitude Non Linearity (±) |
N/A 2 % |
Note for Amplitude Non Linearity |
N/A Percent of full scale or any lesser range, zero based best-fit straight line method. |
Note for Power Supply Current |
N/A Do not apply power to this device without current limiting, 20 mA maximum to do so will destroy the integral IC amplifier. |
Compliance Voltage Range |
N/A +18 to +30 V |
Direct Current (DC) Operating Bias Voltage |
N/A +11 to +13 V |
Discharge Time Constant |
N/A 0.2 to 1.0 sec |
Typical Output Impedance |
N/A 100 O |
Power Supply Current Range |
N/A 2 to 20 mA |
