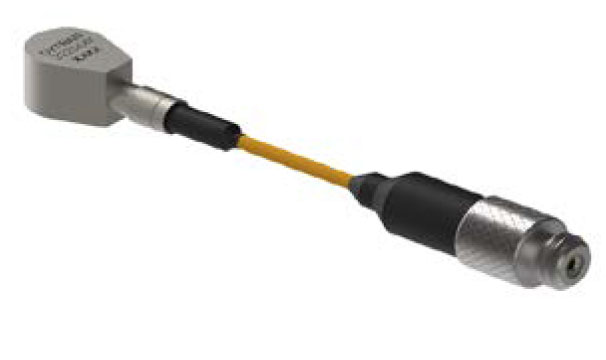

  • Miniature Size
  • Removable Cable with 10-32 Connector
  • TEDS Feature
Unit of Measure

Specifications

Brands

 N/A Dytran

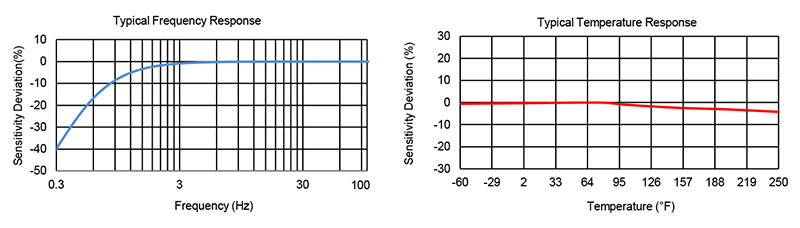

Frequency Response

 N/A 1.0 to 10000 Hz

Type

 N/A Integrated Electronic Piezoelectric (IEPE)

Physical

Maximum Weight (Less Cable)

 N/A 0.03 oz0.85 g

Note for Connector Type

 N/A Mates with Dytran cable 6650A03

Sensing Element Material

 N/A Quartz

Sensing Element Mode

 N/A Shear

Note for Mounting Provision

 N/A Flat mounting surface for adhesive mount.

Case Material

 N/A Titanium

Radially Mounted Connector

 N/A 3 to 56

Cable Length

 N/A 36 mm

Environmental

Temperature Range

 N/A -60 to 250 ºF-51 to 121 ºC

Maximum Peak Shock

 N/A 6000 g58800 m/s²

Environmental Seal

 N/A Hermetic

Transducer Electronic Data Sheet (TEDS) Feature

 N/A IEEE 1451.4

Base Strain Sensitivity at 250 Micro Epsilon (µe)

 N/A 0.0005 g/µε0.0049 g/µε

Maximum Root-Mean-Square (RMS) Vibration

 N/A 7000 g68600 m/s²

Performance

Sensitivity

 N/A 1.0 mV/g0.10 mV/m/s²

Note for Sensitivity

 N/A Measured at 100 Hz, 1 Grms per ISA RP 37.2.

Full Scale (F.S.) Range for ± 5 Volts (V) Voltage Output

 N/A ± 500 g± 4905 m/s²

Frequency Response Tolerance

 N/A ±10 %

Maximum Transverse Sensitivity

 N/A 5 %

Mounted Resonant Frequency

 N/A >60 kHz

Root-Mean-Square (RMS) Noise Resolution

 N/A 0.070 g0.69 m/s²

Full Scale (F.S.) Amplitude Non Linearity (±)

 N/A 2 %

Note for Amplitude Non Linearity

 N/A Percent of full scale or any lesser range, zero based best-fit straight line method.

Electrical

Note for Power Supply Current

 N/A Do not apply power to this device without current limiting, 20 mA maximum to do so will destroy the integral IC amplifier.

Compliance Voltage Range

 N/A +18 to +30 V

Direct Current (DC) Operating Bias Voltage

 N/A +7 to +9 V

Discharge Time Constant

 N/A 0.4 to 1.5 sec

Note for Compliance Voltage Range

 N/A Do not apply power to this device without current limiting, 20 mA maximum to do so will destroy the integral IC amplifier.

Typical Output Impedance

 N/A 100 O

Power Supply Current Range

 N/A 2 to 20 mA

Transducer Electronic Data Sheet (TEDS) Temperature Range

 N/A -40 to 185 ºF-40 to 85 ºC

Note

Note

 N/A In the interest of constant product improvement, we reserve the right to change specifications without notice.
Units on the line drawing are in inches, units in brackets are in millimeters.

Supplied Accessories

Supplied Accessories

 N/A
  1. Model 6591A installation wrench
  2. Model 6298 small petro mounting wax
  3. Accredited calibration certificate (ISO 17025)
